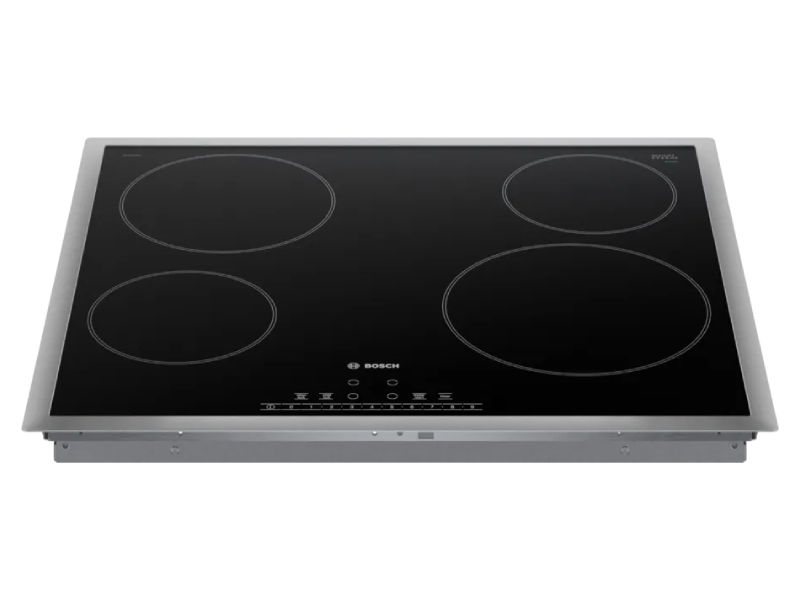

23" Bosch 6 Serie Electric Cooktop in Black Surface Mount with Frame - NET5469SC
![](/img/brandlogo/brand_logo_4.png)
![](/description_images/files/NET5469SC_1.png)

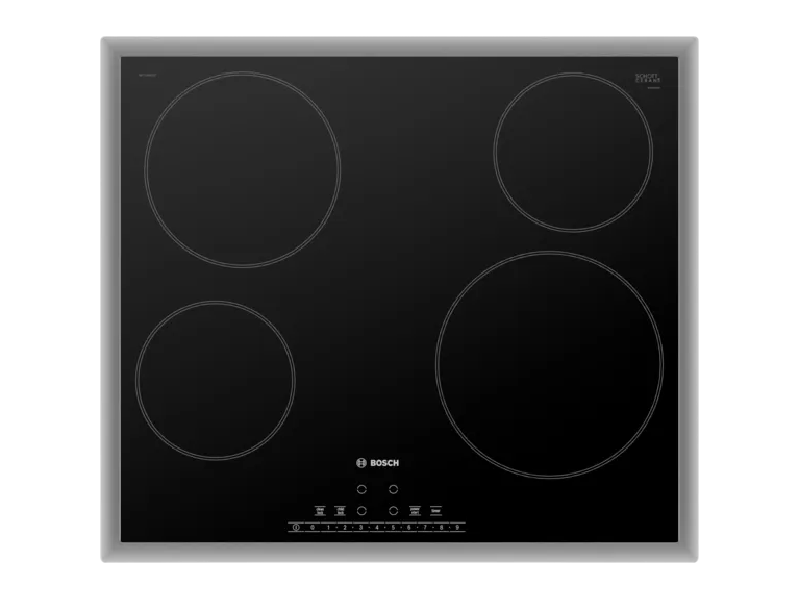

Your temperature, your way.
Juggling multiple pots and pans on different power levels can be confusing and frustrating. With PreciseSelect®, an intuitively designed control panel allows you to select the cooking zones and set the specific power level you want – quickly and easily.
![](/description_images/files/NET5469SC_2.png)
Stores your control settings.
If you turn off the cooktop it saves the last selected setting for a short time. If the cooktop is switched of within a short time again the former settings are still available.
![](/description_images/files/NET5469SC_3.png)

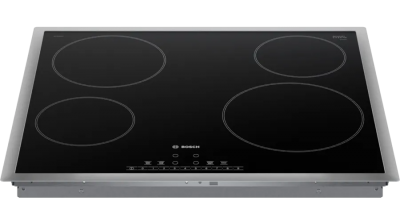

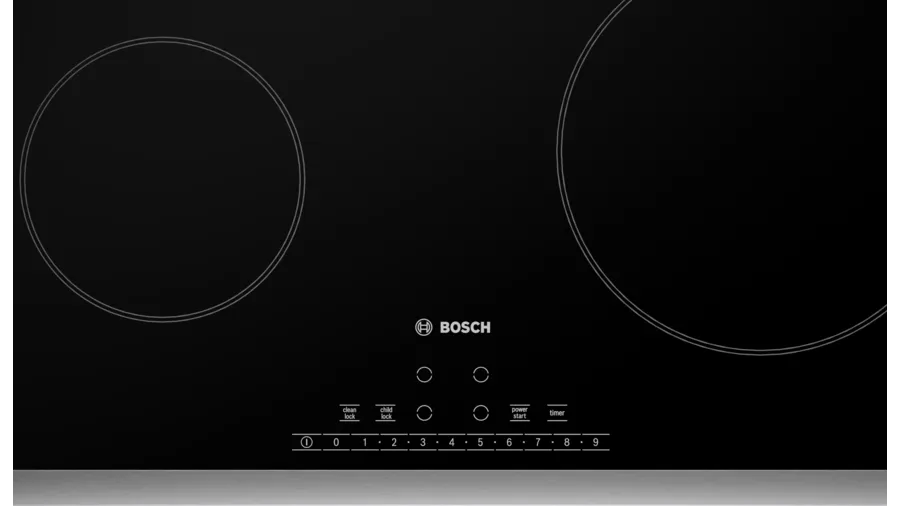

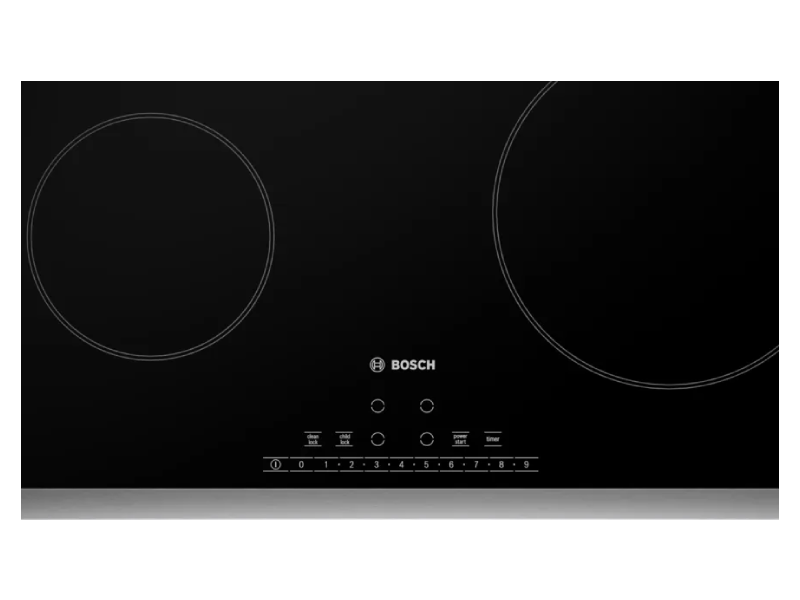

Control at your fingertip.
PreciseSelect® Premium controls on our induction and electric cooktops offer premium usability during cooking. The choice of desired cooking zones, power levels and individual functions are direct and intuitively easy together with a wider LED illuminated display. The light line on power level bar and cooking zones illuminate in a more intense way when one of them has been selected.
- PreciseSelect : direct cooking level selection.

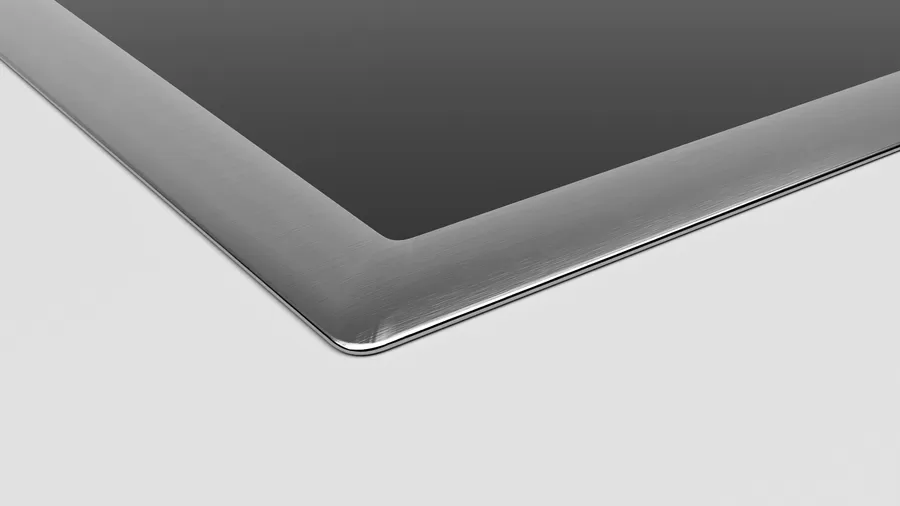

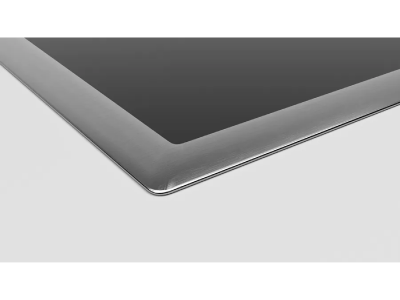

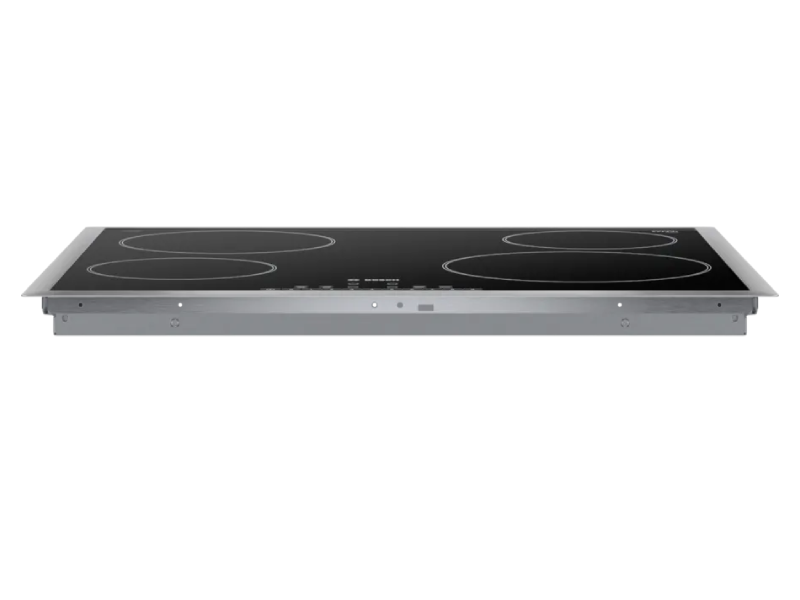

- Steel frame: the flat stainless steel frame around the hob is perfect for integrating into existing countertop cutouts.
- ReStart : if something boils over, the cooktop automatically turns itself off and saves the last selected setting.
- Panel Lock feature locks the control panel to prevent accidental changes in settings.
- PreciseSelect Premium offers 17 Power Levels for Each Cooking Zone
Design
- Black-Glass Seamless Design

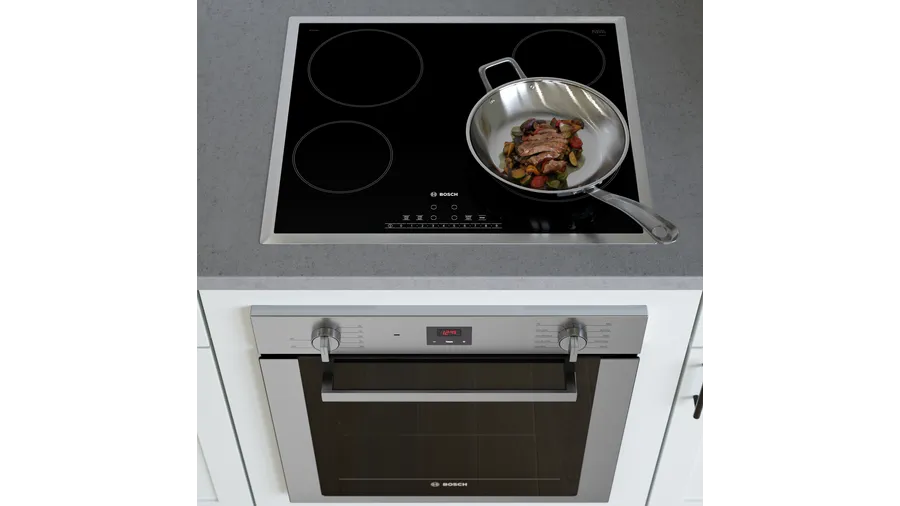

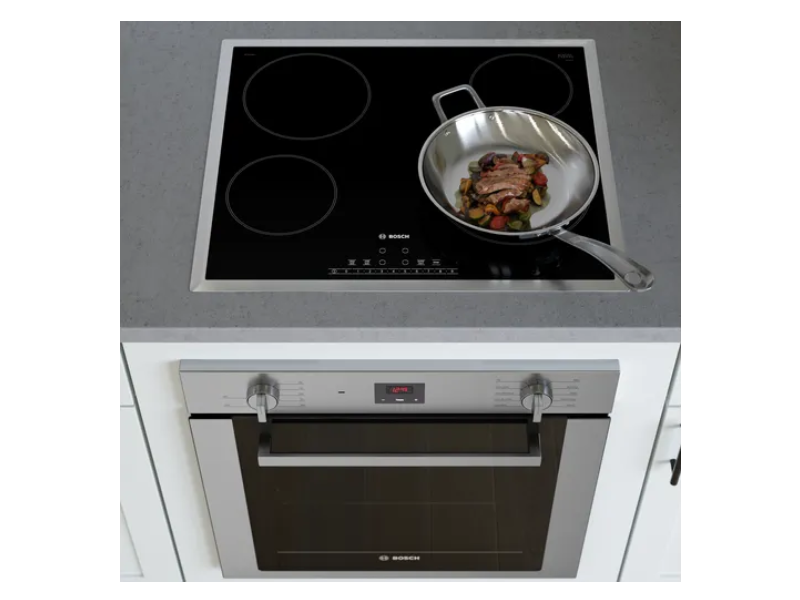

- Cooktop Design Coordinates with Bosch Ovens and Ventilation
Performance
- PreciseSelect - Direct Cooking Level Selection - 17 Settings for Precise Control
- 2,200W Left Rear Element for Faster Boil Times
Safety
- 2-Level Heat Indicator - Warns if Cooktop is Warm or Hot
- ChildLock - Prevents the Cooktop from Being Accidentially Switched on. Locks Temperature Settings if in Use.
Construction type | |
---|---|
Number of electric warming zones | 0 |
Number of Burner | 4 |
Number of radiant elements | 4 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Type of frame | Frame |
Number of gas burners | 0 |
Number of electric cooking zones | 4 |
Design - line | Frame |
Number of electric elements | 0 |
Construction type | Built-in |
Color of surface | Black, Stainless steel |
Color of frame | Stainless steel |
Cooking zone 9 | |
Location of 9th heating element | front centre/cent |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 7 | |
Energy consumption of 7th heating element | 194.9 Wh/kg |
Type of 7th heating element | Radiant heating |
Power of 7th heating element (kW) | 2.2 kW |
Location of 7th heating element | front right |
Dimension of 7th heating element (in) | 8" |
Dimension of 7th heating element | 210 mm |
Cooking zone 6 | |
Location of 6th heating element | center right |
Cooking zone 5 | |
Energy consumption of 5th heating element | 190.2 Wh/kg |
Power of 5th heating element (W) | 1.2 kW |
Location of 5th heating element | back right |
Dimension of 5th heating element (in) | 6" |
Dimension of 5th heating element | 140 mm |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 3 | |
Energy consumption of 3rd heating element | 188.8 Wh/kg |
Type of 3rd heating element | Radiant heating |
Power of 3rd heating element (W) | 2 kW |
Location of 3rd heating element | back left |
Dimension of 3rd heating element (in) | 7" |
Dimension of 3rd heating element | 180 mm |
Cooking zone 1 | |
Energy consumption of heating element | 190.2 Wh/kg |
Type of heating element | Radiant heating |
Power of heating element (W) | 1.2 kW |
Location of 1st heating element | front left |
Dimension of 1st heating element (in) | 6" |
Cooking zone 2 | |
Location of 2nd heating element | center left |
Size and Weight | |
Minimum distance from rear wall (in) | 2 |
Net weight | 20.000 lbs |
Minimum distance from counter front (in) | 2 1/4 |
Net weight | 9.1 kg |
Dimensions | 110 x 583 x 513 mm |
Overall appliance dimensions (HxWxD) (in) | 1/8"+ 4 1/3" x 23" x 20 1/5" |
Connectivity | |
Cooktop-based hood control | No |
Home Connect | No |
General | |
Energy consumption of hob | 191.0 Wh/kg |
Variant color | Black |
Frame type | Standard design |
Basic surface material | Ceramic |
Power of the heating elements | 1 x 2.0 KW, 1 x 2.2 KW, 2 x 1.2 KW |
Dimensions of the heating elements | 1 x 18,0 cm Ø, 1 x 21,0 cm Ø, 2 x 14,0 cm Ø |
Number of Burner | 4 |
Type of appliance width | 60 cm |
Self-sufficient cooker control | Self-sufficient electro hobs |
Cooktop type | Radiant cooktop |
Safety | |
Residual heat indicator | Separate |
Connection | |
Frequency | 60 Hz |
Heating Technology | Electric |
Power cord length | 96 cm |
Watts | 6,600 W |
