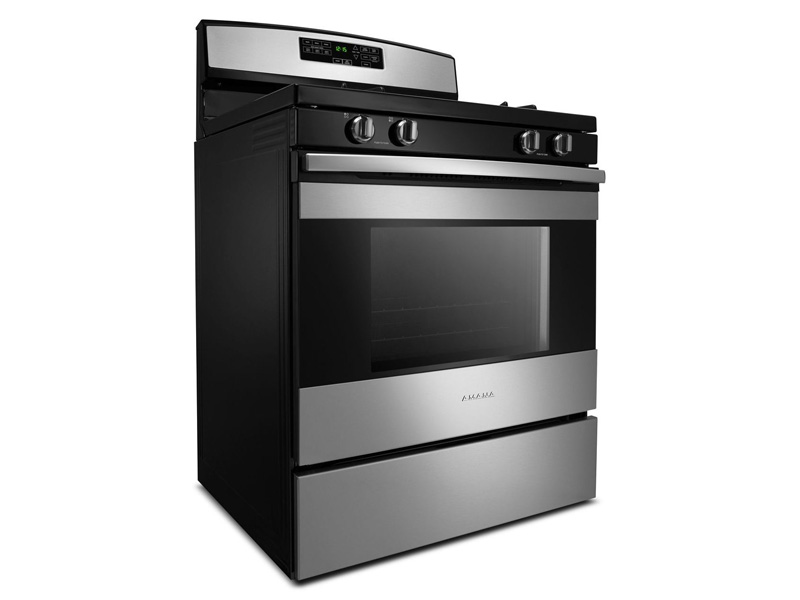

30" Amana 5.0 Cu. Ft. Gas Range With Self-Clean Option - AGR6603SFW
30" Amana 5.0 Cu. Ft. Gas Range With Self-Clean Option - AGR6603SFW
![](/img/brandlogo/brand_logo_1.png)
This 30-inch Amana Gas Range with 5.0 Cu. Ft. Capacity lets you melt, boil and simmer all at once with a Versatile Cooktop. Use Bake Assist Temps to take care of dessert at the same time. Simply pick a preset temperature setting to get started. And when it’s time for cleanup, use the Self-Clean Option to let the oven do the dirtywork for you.
Key Features

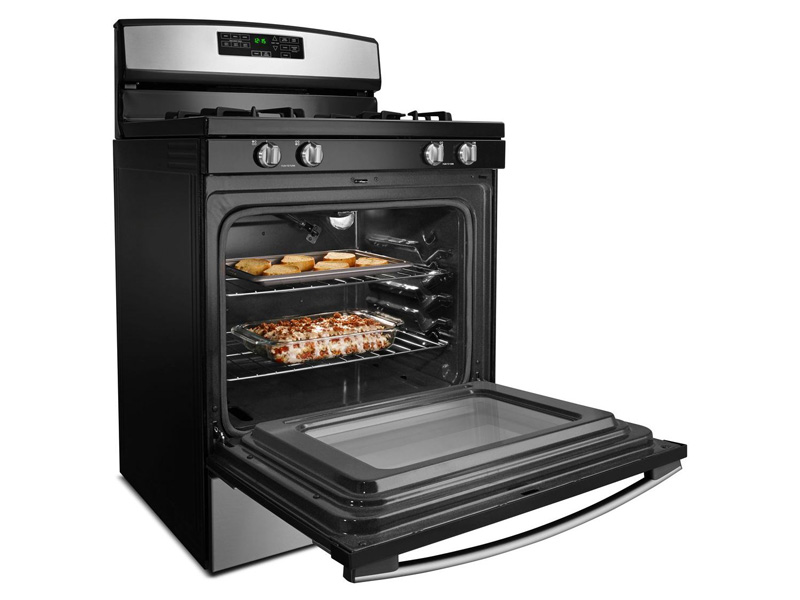

Large Oven Capacity
Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.
Versatile Cooktop
Our Versatile Cooktop features multiple burner options that provide up to 15,000 BTUs, helping you cook your favorites all at once.
Bake Assist Temps
Bake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.
Additional Features
Easy Touch Electronic Controls Plus
Quickly select bake or broil temperatures with these extra-large and easy-to-read Easy Touch Electronic Controls Plus.
Temp Assure Cooking System
Temp Assure Cooking System distributes heat throughout the entire oven to deliver delicious results.
Extra-Large Oven Window
See and savor. The Extra-Large Oven Window provides a bigger view to let you check on food without having to open the oven door.
Warm Hold
Can't serve dinner right away Warm Hold keeps the oven at 145ºF to 190ºF, so dishes like your baked chicken parmesan are still ready when you are.
EasyAccess Broiler Door
The EasyAccess broiler door is easy to reach and can help broil large dinners like steak and roasted vegetables.
Custom Broil
Use the Custom Broil setting to broil in five-degree increments to melt cheese, sear steak or toast those buns with more precision.
Oven Lockout
Oven Lockout is a safety feature that locks your oven and its controls to help protect against accidental use.
Self-Clean Option
There's no need to scrape and scrub with the Self-Clean Option. Use this setting to let your range do the dirty work for you in just two to four hours.
Sealed Burners
Don't sweat the small spills. Sealed burners make cleanup easy by limiting spills from dripping beneath the cooktop.
Configuration and Overview | |
---|---|
Volts | 120 |
Amps | 15 |
Size (in.) | 30 |
Range Type | Freestanding |
Fuel Type | Gas |
Cooktop Features | |
Cooktop Element Style | Sealed Burner |
Cooktop Surface Color | Color Coordinated Black on Stainless |
Cooktop Surface Material | Porcelain Coated Steel |
Left Front Element-Burner Power | 12,500 BTU |
Number of Burner | 4 |
Left Front Element-Burner Type | High Output |
Left Rear Element-Burner Type | Multi Purpose |
Left Rear Element-Burner Power | 9500 BTU |
Right Front Element-Burner Power | 9500 BTU |
Right Front Element-Burner Type | Sealed Burner |
Right Rear Element-Burner Power | 5000 BTU |
Number of Grates | 4 |
Right Rear Element-Burner Type | Simmer |
Grate Details | Dishwasher Safe, Matte Finish, Porcelain Coated Cast Grates |
Oven Features | |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Power On Indicator Light | Yes |
Number of Oven Lights | 1 |
Light Type | Incandescent |
Oven Rack Type | Standard |
Self-Cleaning | Self-Cleaning |
Convection Cooking Technology | None |
Convection Cooking Technology | No |
Bake Element Power | 16500 BTU |
Hidden Bake Element | Yes |
Broiler Element Power | 10000 BTU |
Broiler Location | Top of Oven |
Number of Oven Racks | 2 |
CONTROLS | |
Drawer Type | Storage Drawer |
Handle Material | Metal |
Handle Type | Reach-Through Handle |
Selections | Audible Signal, Clock, Control Lock, Sabbath Mode, Timer, Warm Hold |
Specification | |
Depth | 27 7/8 |
Height | 46 7/8 |
Width | 29 7/8 |
