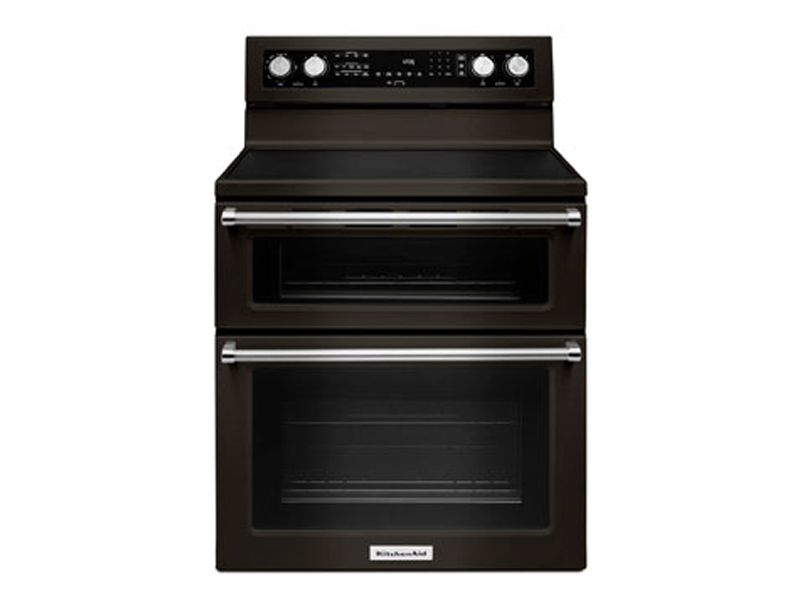

30" KitchenAid 6.7 Cu. Ft. 5 Burner Electric Double Oven Convection Range - YKFED500EBS
You may also like
External Dimensions
Dimensions shown are for planning purposes only. For complete information, see Installation Instructions packed with product.
Height : 47 3/8
Width : 29 15/16
Key Features
Even-Heat True Convection : Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
6.7 Cu. Ft. Total Capacity : Provides an extra-large combined cooking capacity for preparing multiple dishes at once and gives you the flexibility of separate temperature zones.
Professionally-Inspired Design : Combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid Badge, a symbol of uncompromised quality.
5 Cooking Elements Including a Warm Zone : Provides five independent cooking surfaces that allow you to do more on your range. It features a triple cooking zone of 6, 9 and 12 inches, one 10 inch zone and two 6 inch cooking zones, plus a dedicated warming zone.
EasyConvect Conversion System : Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
SatinGlide Rack : Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Hidden Bake : Covers up the baking element, making it easier to wipe away spills.
Triple-Ring Element : With three element sizes at one location, you get the versatility to match cooking surface to cookware size.
10" Even-Heat Ultra Element : Delivers consistent heat across the cooktop, including fast boils, precise simmering and exceptional melting.
Stainless Steel Cooktop Trim : Provides a seamless transition to other surfaces and enhances the look of edges around stainless steel cooktops.
CONTROLS | |
---|---|
Handle Material | Metal |
Selections | Control Lock, Cook Time Indicator, Delay Start, Easy Convect Conversion, Keep Warm Setting, Proofing, Sabbath Mode, Slow Cook |
Drawer Type | None |
UL | UL |
Star K Compliant | Sabbath Mode |
Oven Features | |
Oven Rack Type | 1 Gliding Roll-Out, 2 Heavy Duty |
Number of Rack Guides | 2 Upper-5 Lower |
Convection Cooking Technology | Thermal Upper-Convection Lower |
Number of Oven Racks | 1 Upper-2 Lower |
Convection Cooking Technology | Bake, Broil, Roast |
Convection Cooking Technology | Fan |
Convection Element Power (watts) | 1600 |
Broiler Location | Top of Oven |
Broiler Element Power | 3600W Both |
Hidden Bake Element | Yes |
Bake Element Power | 2000W Both |
Self-Cleaning | Self-Cleaning |
Light Type | Incandescent |
Power On Indicator Light | Yes |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Automatic Convection Conversion Temperature Adjust | Yes |
Number of Oven Lights | 1 |
Cooktop Features | |
Right Rear Element-Burner Power | 1200W |
Right Rear Element-Burner Size | 6" |
Right Rear Element-Burner Type | Single |
Right Front Element-Burner Type | Radiant Hyper |
Right Front Element-Burner Power | 3200W |
Right Front Element-Burner Size | 10" |
Left Rear Element-Burner Type | Single |
Left Rear Element-Burner Power | 700W |
Left Rear Element-Burner Size | 6" |
Left Front Element-Burner Type | Triple |
Left Front Element-Burner Size | 12"/9"/6" |
Center Rear Element-Burner Size | 6" |
Center Rear Element-Burner Type | Warming |
Left Front Element-Burner Power | 2700W/1950W/1050W |
Number of Burner | 5 |
Center Rear Element-Burner Power | 100W |
Cooktop Surface Material | Ceramic Glass |
Cooktop Surface Color | Black |
Cooktop Element Style | Radiant |
Configuration and Overview | |
Size | 30 |
Capacity | 6.70 |
Star K Compliant | Sabbath Mode |
Range Type | Freestanding Double Oven |
Fuel Type | Electric |
