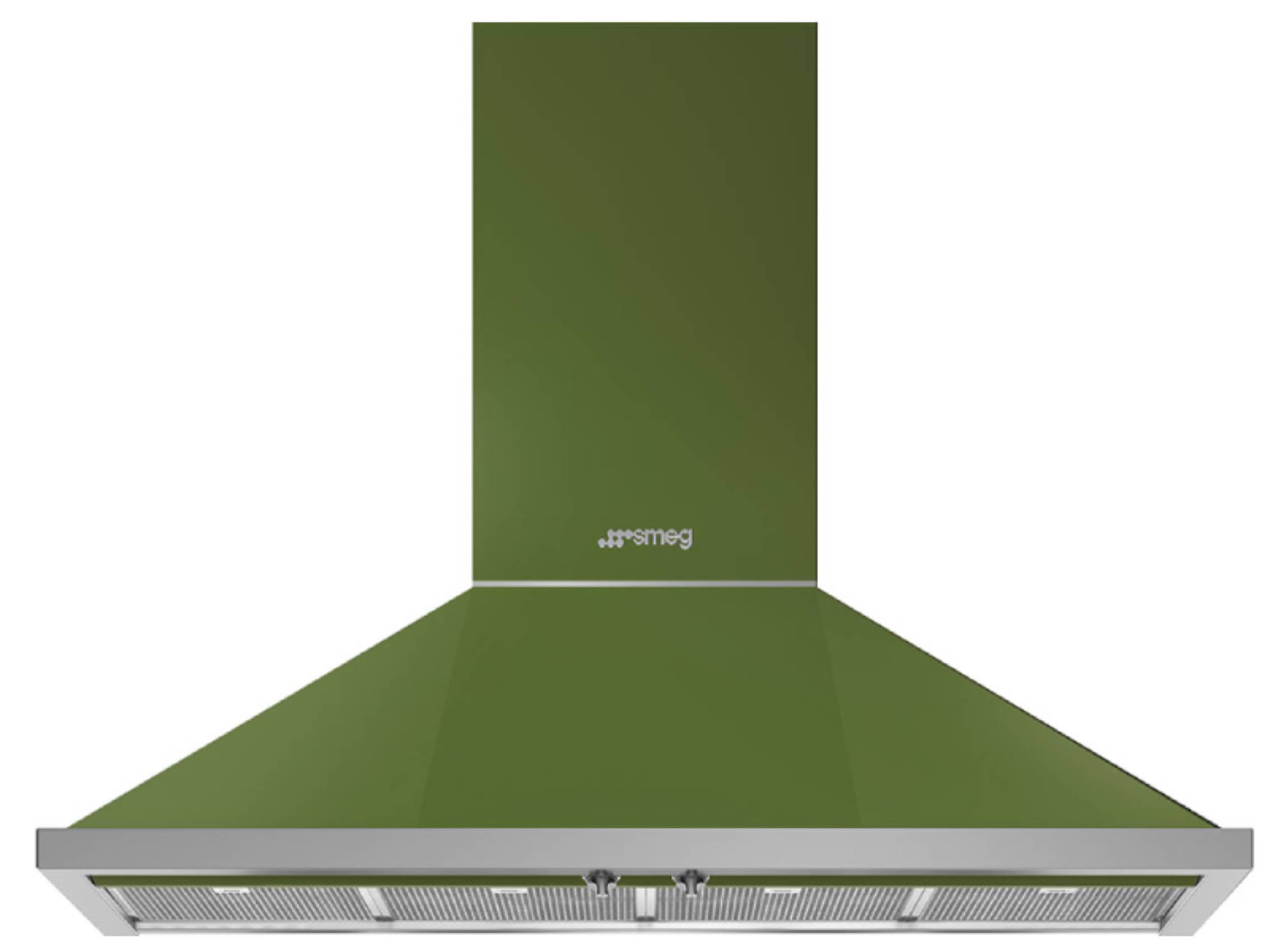

48" SMEG Portofino Wall Mount Hood - KPF48UOG
Speed 1 | |
---|---|
Noise level IEC 60704-2-13 | 53 dB(A) |
Extraction rate IEC 61591 | 210.5 CFM |
Power | 207 W |
ELECTRICAL CONNECTION | |
Power supply cable length | 1000 " |
Frequency (Hz) | 60 Hz |
Voltage | 120 V |
Electrical connection rating | 535 W |
Technical Features | |
Non return valve | Yes |
Vent outlet | 150 " |
Minimum distance from ELECTRIC hob | 650 " |
Minimum distance from GAS hob | 750 " |
Anti-grease filters | Stainless steel |
No. of filters | 4 |
Motor power | 455 W |
Free outlet maximum capacity | 577.5 CFM |
Light color temperature scale (°K) | 4000 °K |
Light Power | 20 W |
Light type | LED |
No. of lights | 4 |
CONTROLS | |
Controls colour | Steel effect |
No. of controls | 2 |
Control knobs | Portofino |
Control Type | Control knobs |
Programs / Functions | |
Number of Speeds | 4 |
AESTHETICS | |
Type of steel | Brushed |
Material | Stainless Steel + Painted Material |
Installation Type | Chimney |
Aesthetic | Portofino |
Colour | Olive Green |
Type | |
EAN code | 8017709261719 |
Extraction | Extraction |
Hood width | 120 " |
Installation Type | Decorative wall hood |
Product family | Hood |
Speed 2 | |
Extraction rate IEC 61591 | 317 CFM |
Noise level IEC 60704-2-13 | 62 dB(A) |
Power | 270 W |
Speed 3 | |
Extraction rate IEC 61591 | 437.5 CFM |
Noise level IEC 60704-2-13 | 69 dB(A) |
Power | 350 W |
Speed 4 | |
Extraction rate IEC 61591 | 573.5 CFM |
Noise level IEC 60704-2-13 | 75 dB(A) |
Power | 479 W |
LOGISTIC INFORMATION | |
Width | 47 " |
Depth (mm) | 19 7/8 " |
Product Height (mm) | 46 7/8 " |
Net weight (kg) | 45 lbs |
Gross weight (kg) | 63 lbs |
