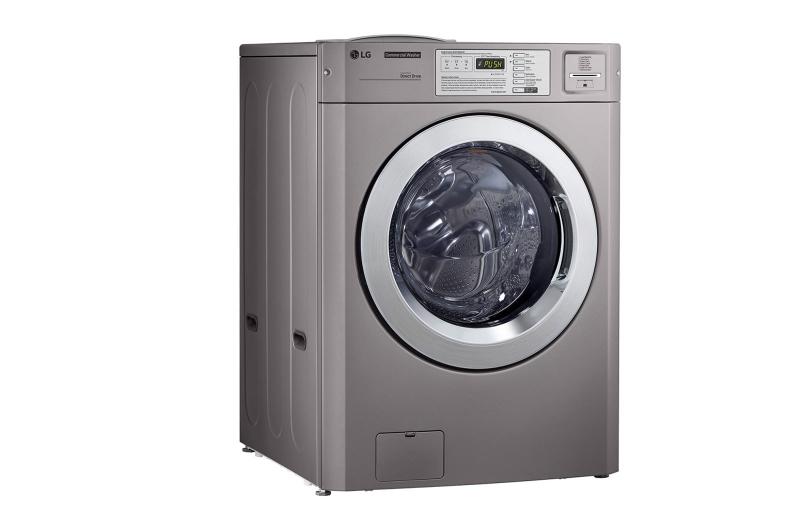

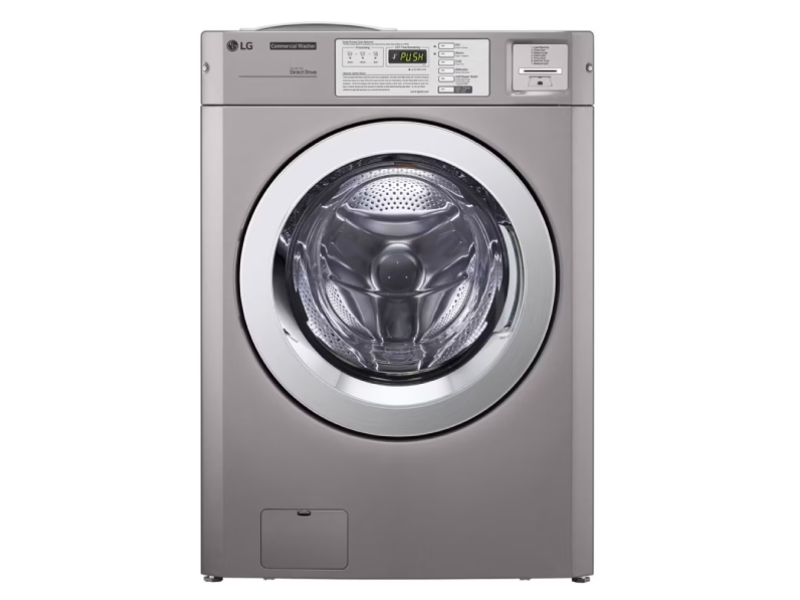

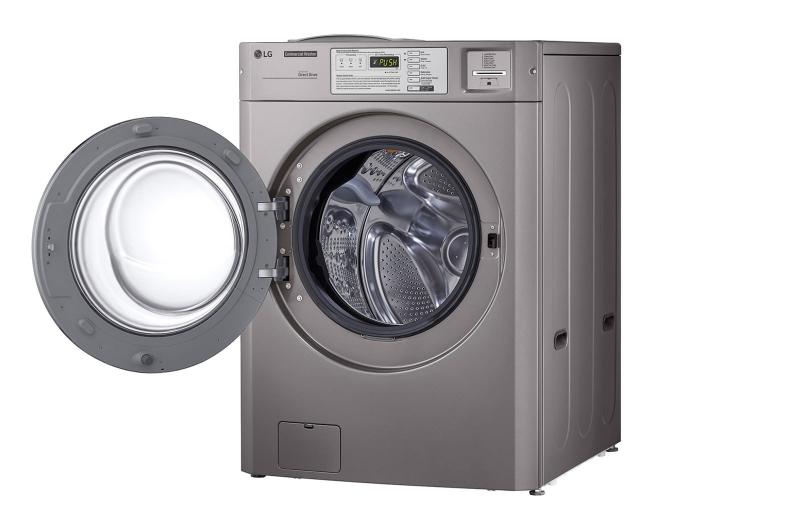

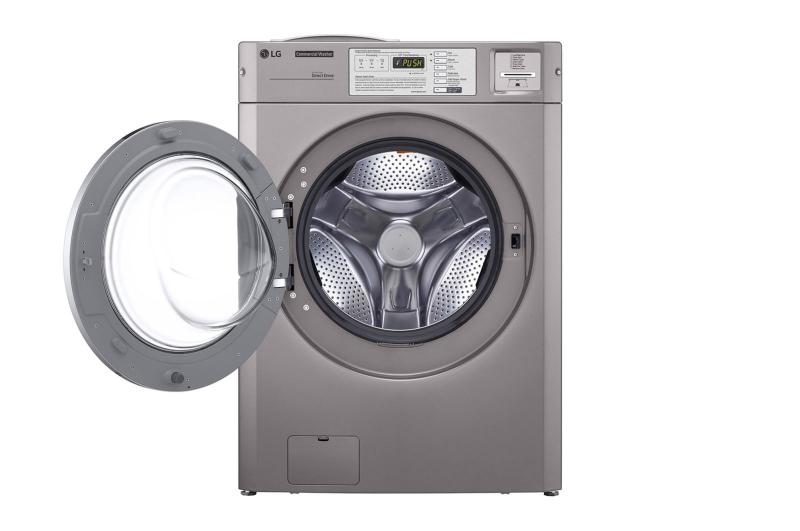

29" LG Commercial 5.2 Cu. Ft. Large Capacity FrontLoad Washer - TCWM2013CS3
Key Features
- Large Capacity
- Inverter Direct Drive
- Multi Heat Treatment
- Premium Powder Coating
- Atomizing & Twin Spray
- Auto Dosing System
Commercial Washer
Introducing Your Business Partner
Durability
Technology Beyond Innovation
LG is committed to developing durable machines for your business.

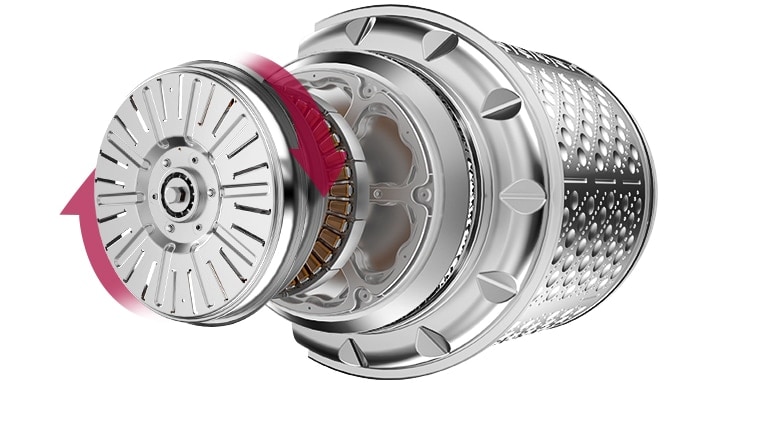

Inverter Direct Drive
Excellent Durability & Reliability
The Inverter Direct Drive drums on LG Commercial Laundry machines are directly attached to the motor, making it durable and reliable for years to come. Thanks to a fewer number of parts, these machines also need fewer repairs.

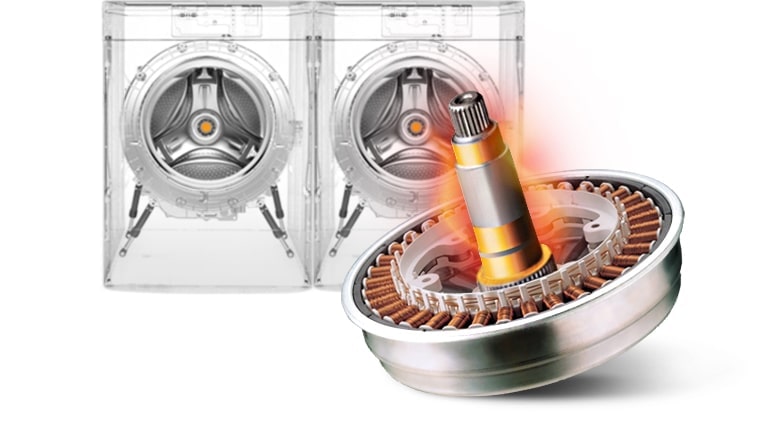

Multi Heat Treatment
Fewer Replacements & Repair Expenses
Multi Heat Treatment improves durability and resists against gradual abrasion. LG washing machines enjoy extended operating life and less repairs, helping your business save costs.

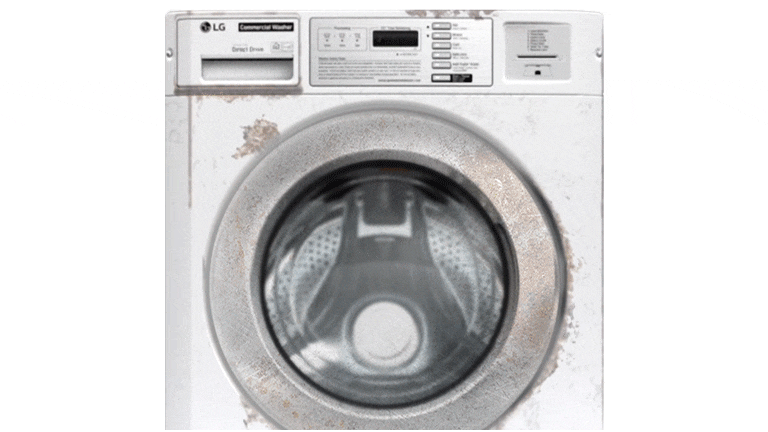

Premium Powder Coating
Resistance to Contamination & Rust
Premium Powder Coating provides the same durability as car paint, which does not rust easily and extends product lifetime. The coating also helps resist scratches and contamination that frequently occur in communal washing machines.
Performance & Efficiency
Powerful & Cost-Saving
Increase revenue and customer satisfaction with LG.

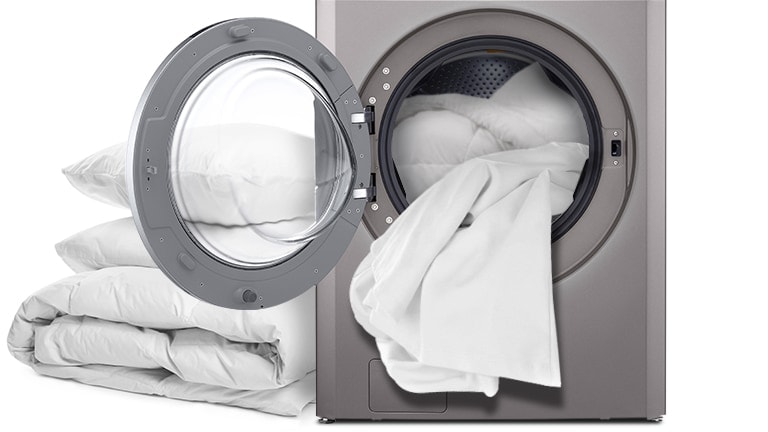

Large Capacity
Do a Whole Lot at Once
Customers favor the large capacity of LG Commercial Laundry machines because they can finish their laundry in one load. Bigger capacity means more customer rotations for your business.

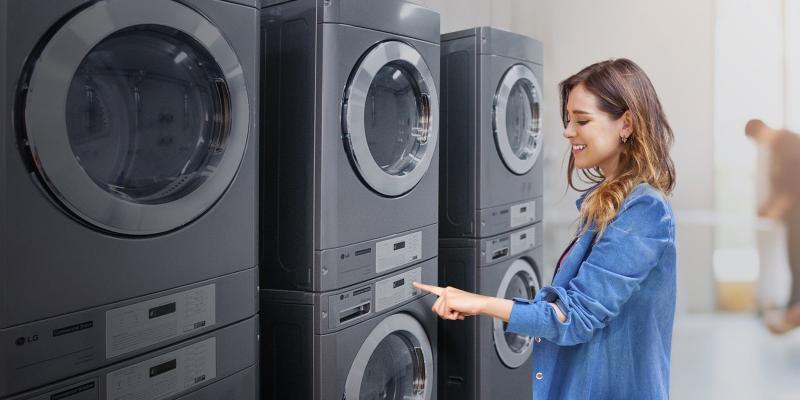

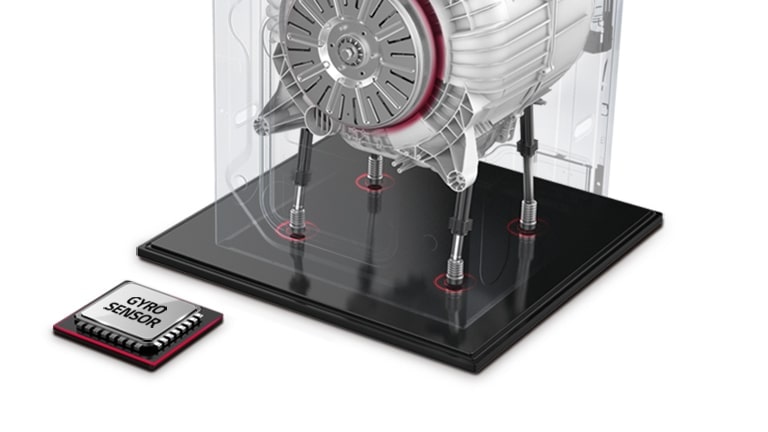

Gyro Balancing System
Low Noise and Less Vibration
The noise and vibration emitted by LG Commercial Laundry machines are low enough for people to focus on other tasks while they wait. Create a pleasant environment that can meet the needs of various customers.

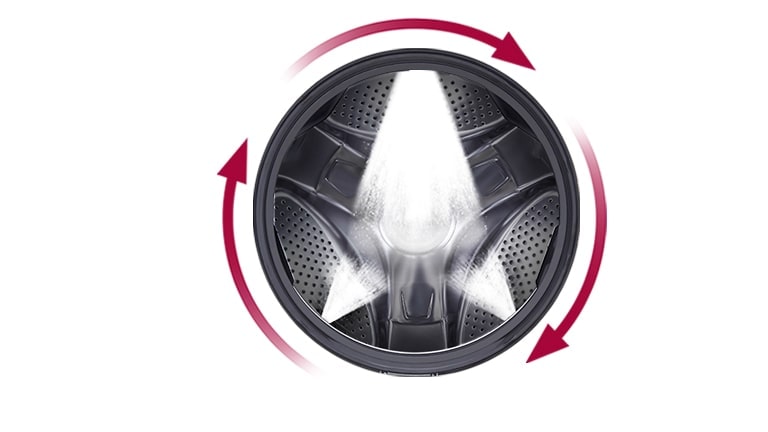

Atomizing & Twin Spray
Save Time and Keep Up with Your Busy Schedule
Twin Spray rinses your clothes non-stop while spinning, resulting in a speedier wash and higher customer rotation rate. Atomizing Spray also sprays water on the door, so you don't have to clean excess suds off the door glass.

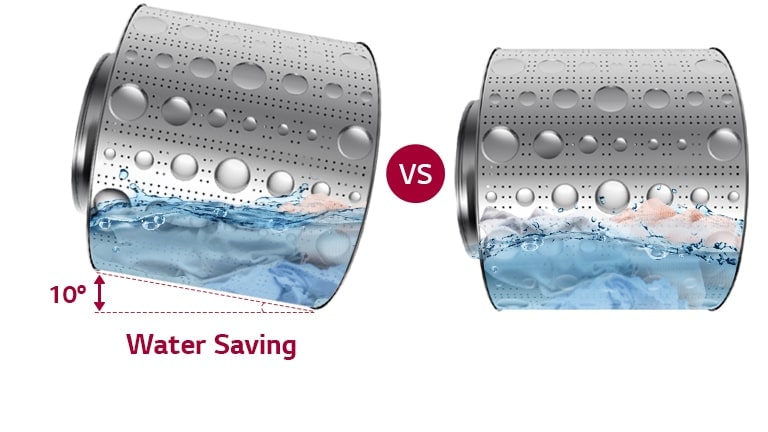

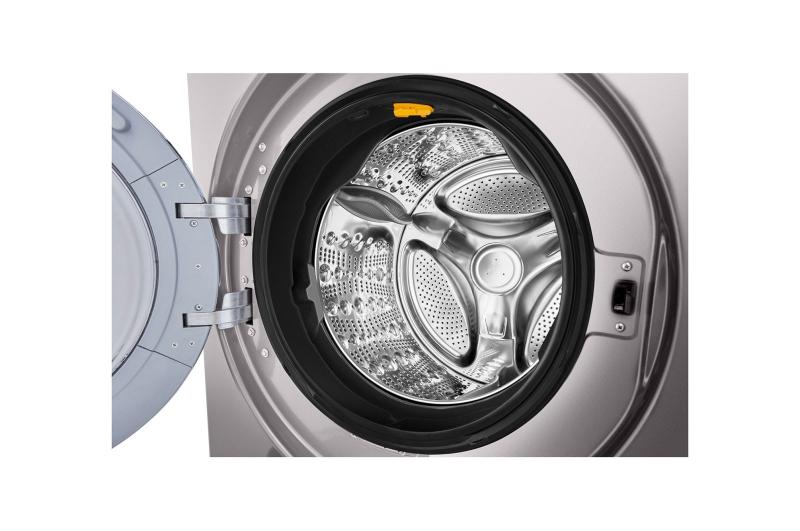

10 Tilted Drum
High Performance with Less Water Consumption
The specially-engineered 10 slope drum enables washing machine to use less water because it more puts the laundry into the water without sacrificing superior washing performance. Don't compromise washing result to save your cost.
Convenience
Efficient System & Easy Maintenance
Easy and hygienic management so you can focus on your business.

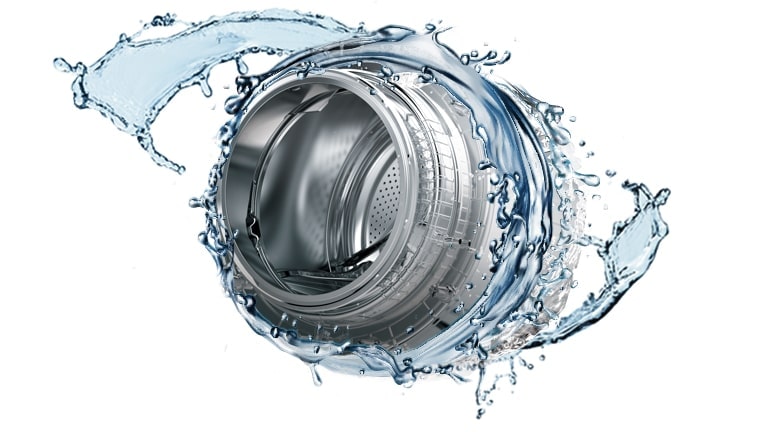

Tub Cleaning System
Cleaner Tubs for Cleaner Laundry
Dirty tubs that are used for long periods of time can affect laundry performance. The Tub Cleaning System keeps the tub hygienic and clean* for the many people who use the washing machine.

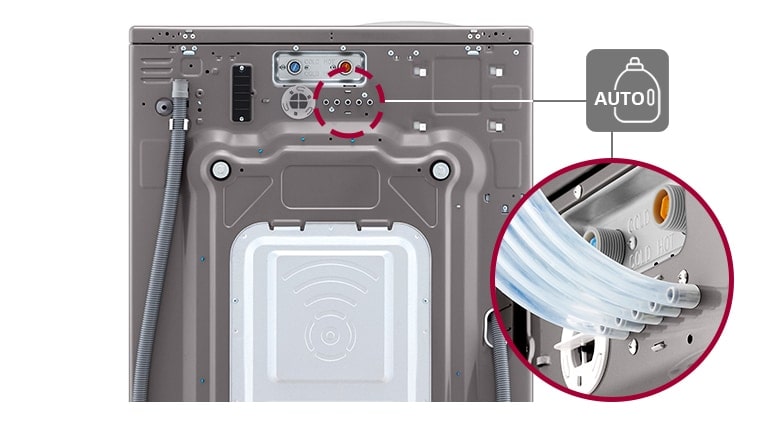

Auto Dosing System
Easy Detergent Management
The Auto Dosing System supplies uniform amounts of detergent, bleach, and softener for every cycle.
Smarter Convenience
A Smarter Washing Machine
Quickly check the laundry status, monitor the usage patterns, and product errors through LG Smart Solution anytime and anywhere. Easily interact with it and operate remotely while enjoying the latest innovations.
CYLINDER | |
---|---|
Depth - in. (mm) | 20.4 (518.1) |
Diameter - in. (mm) | 24 (610.8) |
Drum Volume - cu.ft (l) | 5.2 (147) |
Speed | |
Wash - RPM | 46 |
Extract (High Speed) - Max RPM | 980 |
G-force - G | 327 |
RATING | |
Electric Ratings - V/Hz/A | 120/60/5, 220~240/50/5, 220/60/5 |
*CONSUMPTION INDEX¹⁾ | |
Water - gal (l) | 17.7 (67.0) |
Electricity - kWh/cycle | 0.084 |
NOISE & CYCLE TIME | |
Noise Level (Sound Power) - dB | Lower than 62 |
Program Duration in Minutes (Default) - min | 37 |
SYSTEM & CONTROL | |
Inverter Direct Drive Motor | Yes |
Heating Element - W | 120V 1,000 (Only for Tub Clean), 220V 2,000 (Only for Tub Clean) |
Drain System | Gravity Drain/Pump Drain (NA Only) |
Emergency Stop Button | Yes (OPL Only) |
Inlet Valve | AC |
Auto Dosing Interface | Yes |
Damper | 4 Friction Dampers |
Programs | |
Program List | Hot, Warm, Cold, Delicates, Add Super Wash (Card & Coin)/20 Custom PGM (OPL) |
EXTERNAL FINISH | |
Drum | Stainless Steel |
CIRCUIT PROTECTION | |
PCB Fuse - Main Control Board - amps | 12 (220~240 V) |
PCB Fuse- Filter Assembly - amps | 15 |
Main PCB MICOM | T370 |
