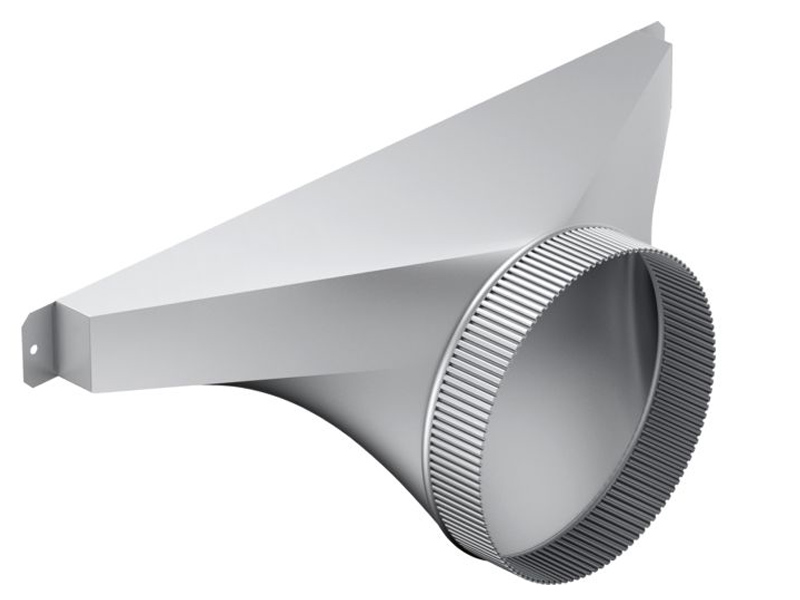

Bosch 8" Side/Rear Transition for Downdraft - HDDSTRAN8

SKU : HDDSTRAN8

$179.00 CAD
WAS $205.00
Sale Ends 01-01-2025

Literature

8" Round Transition Enable Ducting To Be At Sides Or Rear Of Downdraft For Flexible Configurations To Maximize Your Kitchen Design

  • Flexible Transition Design Allows For Left, Right Or Rear Venting
  • For DHG602DUC Flexible Downdraft Blower Used As Inline Installation
  • Some Blower Positions May Need Deeper Cabinets. See Installation Guide

Design

  • Customize The Direction Of Duct Discharge To Be Left, Right, Or Rear

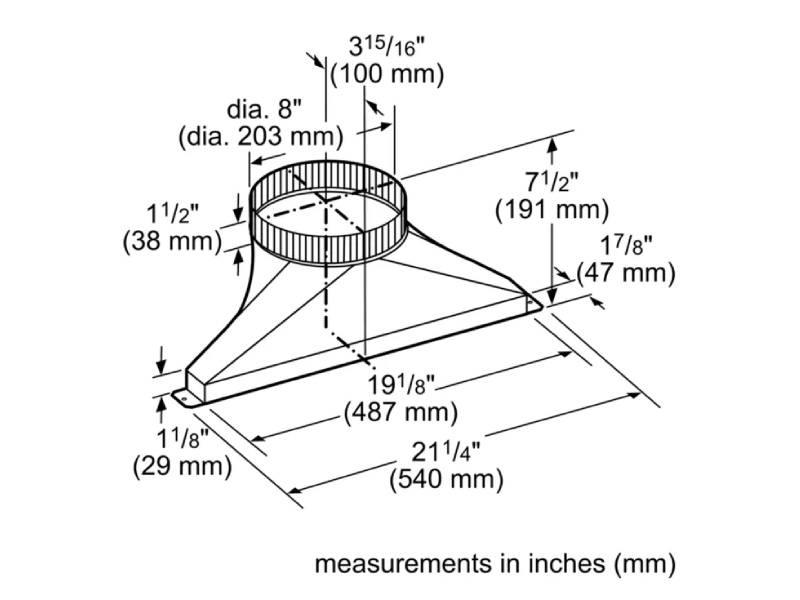

  • Rectangular 1-7/8" x 19" Transition To 8" Round
  • Ability To Use With Ducting Or Elbows With 8" Round Duct Connection
  • Some Blower Positions May Need Deeper Cabinets. See Installation Guide

Performance

  • For DHG602DUC Flexible Downdraft Blower Used As Inline Installation
  • See Installation Guide For Details
Technical data
BrandBosch
Name of product imageMCSA02477409_i3922_1851069_CVTSIDE8_def.jpg
Construction typeBuilt-in
Height of the packed product (mm)318 mm
Width of the packed product (mm)324 mm
Depth of the packed product (mm)635 mm
SKUHDDSTRAN8
Product name / series nameproduct line supplement cooker hood
EAN code4,242,002,909,363
Gross weight (kg)1.36 kg
Height of the product (mm)32 mm
Product groupHood
UPC code825225920434
EAN Barcode' 2E20AC-jajdgd
Standard number of units per pallet20
Internal article number000000000000777721
Net weight (kg)1.214 kg
Product group for which the accessory is availableHood
Product packaging dimensions (HxWxD) (mm)317 x 323 x 635 mm
Other data
EAN Barcode' 2E20AC-jajdgd
Standard number of units per pallet20
Country of originUS
Product packaging dimensions (HxWxD) (mm)317 x 323 x 635 mm
