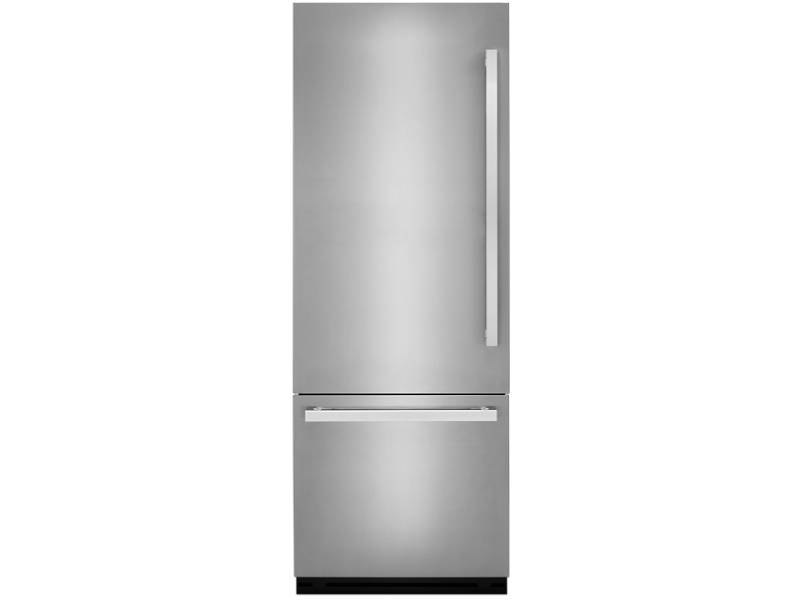

30" Jenn-Air Panel-ready Built-in Bottom-Mount Refrigerator Left Swing - JBBFL30NMX
![](/img/brandlogo/brand_logo_28.png)
Top Features
![](/desc_images/23260/JBBFL30NMX10_0.jpg)

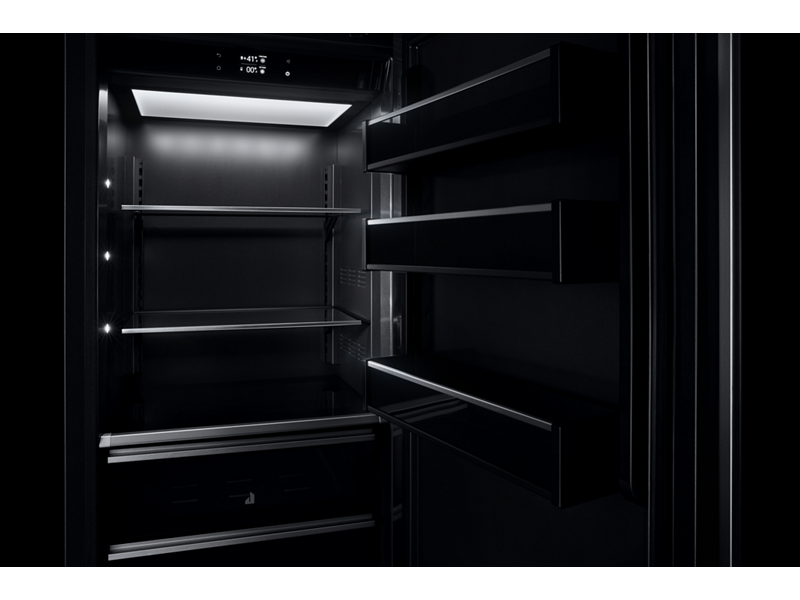

Daring Obsidian Finish Interior
Inspired by volcanic glass, this industry-exclusive dark finish draws attention with high-contrast style. Fine foods and fresh produce emerge like vibrant art, with LED lighting showcasing your ingredients against the alluring interior.
![](/desc_images/23260/JBBFL30NMX10_1.jpg)

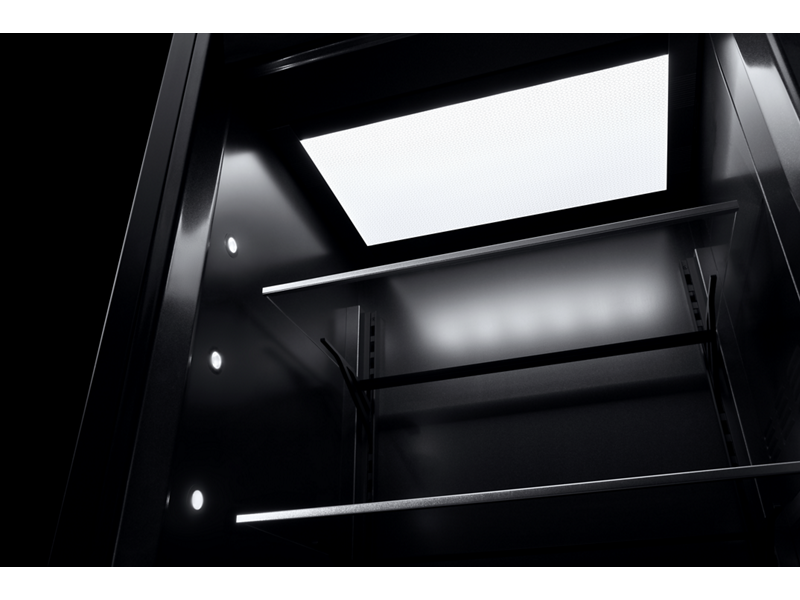

Multi-Point Lighting with Full-Width Canopy Lighting
Illuminate food items against the Obsidian finish interior with multiple LED lights that enhance visibility. Multi-Point Lighting includes lights along the side and bright Full-Width Canopy Lighting throughout the interior to showcase fresh, vibrant ingredients.
![](/desc_images/23260/JBBFL30NMX10_2.jpg)

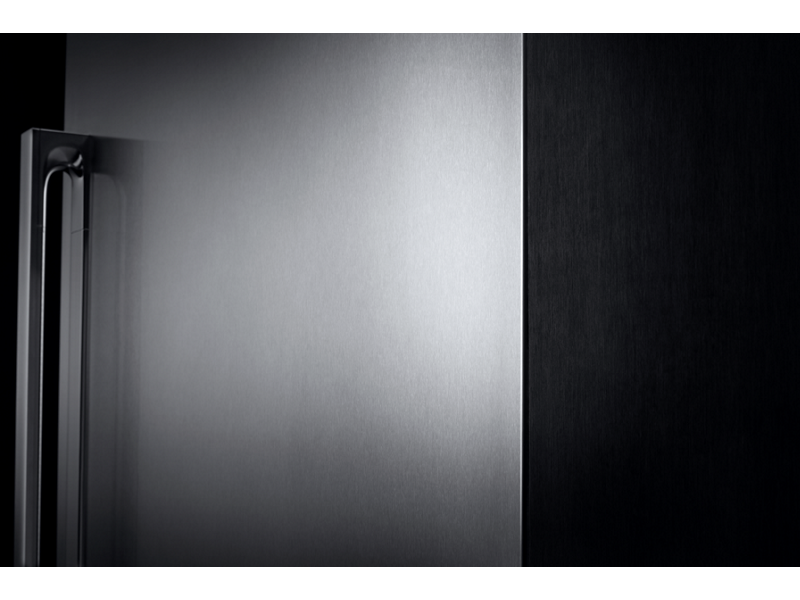

Fully Flush & Integrated Design Within 25" Deep Cabinet
With a stealth flush, full-height door and articulating hinge, this built-in refrigerator goes incognito until open, enabling the refrigerator to install flush within 25" deep cabinetry to offer a seamless appearance.
![](/desc_images/23260/JBBFL30NMX10_3.jpg)

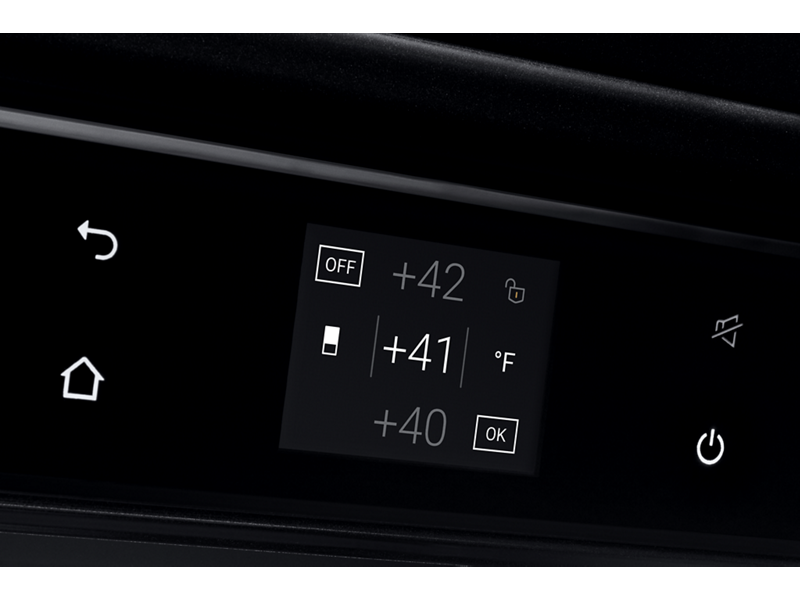

Precision Temperature Management™ System with Dual Compressors
Sensor-controlled dual compressors manage the climate in the refrigerator and freezer, helping to keep your ingredients at their ideal preservation temperatures. The smooth-running refrigerator avoids abrupt start and stop cycles to maintain quiet tranquility in your space.
![](/desc_images/23260/JBBFL30NMX10_4.jpg)

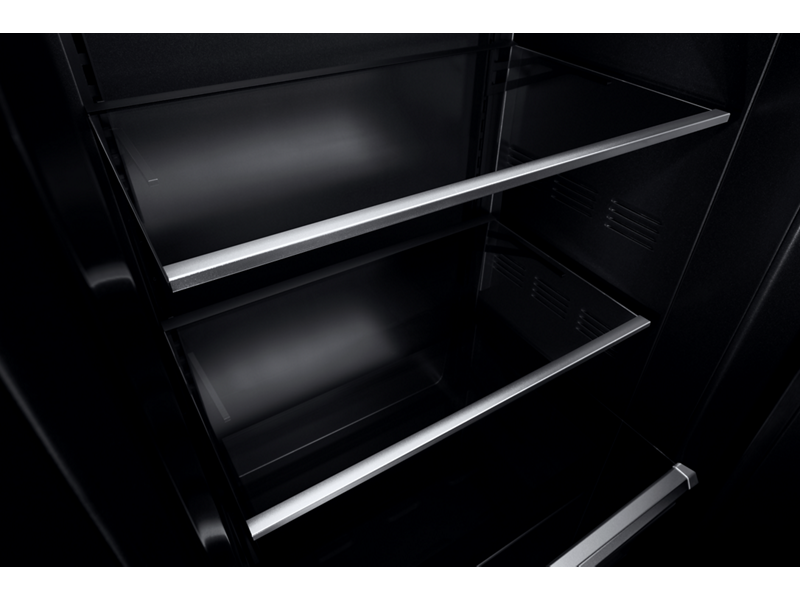

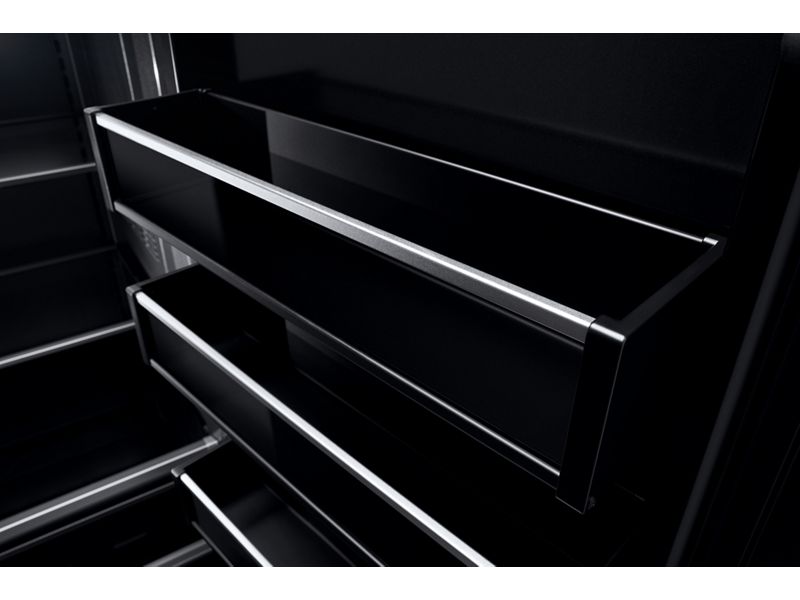

Solid Glass and Metal
Each drawer, shelf and door bin in the refrigerator is made of solid glass and metal that is naturally odor-resistant. To hell with cheap plastic in luxury door bins, shelves and liners.
Italian Craftsmanship
This built-in bottom mount refrigerator is meticulously designed and precisely assembled in Italy.
Additional Features
Flexible Cooling Modes
Select from four integrated modes to automatically adjust cooling temperatures for your every need. Flexible cooling functions include Max Cool in the refrigerator and Fast Freeze, DeepFreeze® Mode and Max Ice in the freezer.
DeepFreeze® Mode
Internal temperatures in the freezer plummet as low as -8ºF—an arctic refuge for frozen foods. The DeepFreeze® indicator identifies the ideal temperature for locking in flavor and freshness.
Fast Freeze
A rush of cold air bursts into the upper drawer of the freezer at the touch of a button to rapidly chill libations and food items and create the ideal frozen environment for 12 hours.
Max Cool Option
Plummet internal temperatures to their lowest point for 12 hours.
Automatic Ice Maker
Indulge in access to a steady supply of filtered Prism Ice conveniently stowed in its own drawer.
Max Ice
Max Ice rapidly produces a steady supply of Prism Ice, delivering ice faster than normal for 24 hours, to accommodate your entertaining needs.
Water Filter Included
Remove contaminants and minerals at the source. With a water filter included, you can feel confident about the quality of your water and ice as your water filter is certified to reduce 99% of lead.* *Certified by NSF International to remove 99% of lead at pH level 6.5. Reduction may vary based on your water’s pH level. Contaminants reduced by this water filter are not necessarily in all users’ water.
Star-K Certified
This refrigerator is Star-K Certified for use on the Sabbath.
Sabbath Mode
Allows the door of the refrigerator or freezer to be opened or closed during the Sabbath or other religious holidays without directly turning on or off any lights, digital readouts, solenoids, fans, valves, icons, tones, alarms or the compressor.
Magnet-to-Metal Seal
Powerful magnets in the gasket directly grasp the built-in metal refrigerator door to create a tight seal.

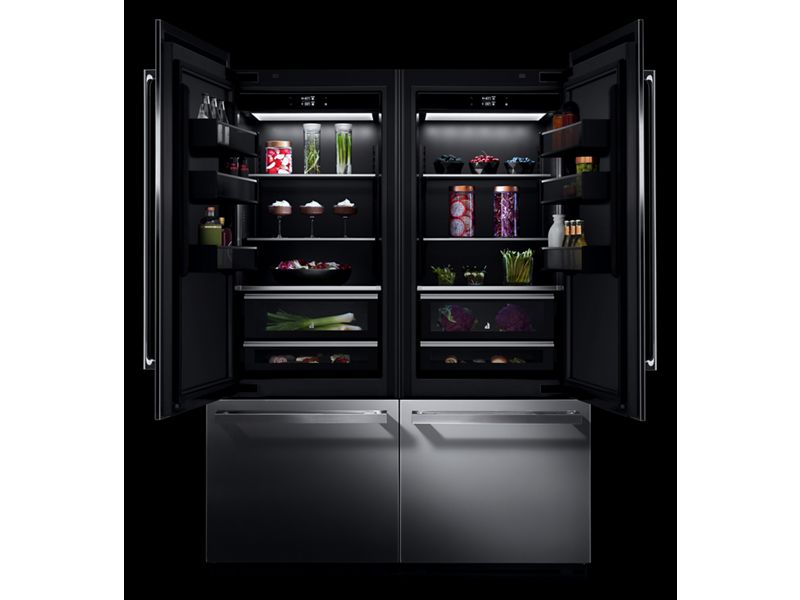

Join Kit Available
Pair two units with Join Kits that seamlessly integrate the appliances together without compromising aesthetics. (Sold separately)
ENERGY STAR® Certified
This JENNAIR built-in refrigerator is ENERGY STAR Certified
Experts at the Ready
Our crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you—from sales to installation to ownership.
Serviced by a Select Few
We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
Overview
Designed and assembled in Italy, this Built-In Bottom Mount Refrigerator allows you to think beyond the kitchen while keeping ingredients at optimal temperatures. Multi-Point LED Lighting with Canopy Lighting illuminates vibrant foods against the striking Daring Obsidian Interior, while the Panel-Ready options allow you to match the exterior to your aesthetics.
Details | |
---|---|
Installation Option | Built-In |
Design Expression | Panel-Ready |
Refrigerator Type | Bottom Freezer |
Refrigerator Details | |
Non Climate Control Drawers | 1 Full-Width, 2 Half-Width |
Refrigerator Lighting | LED |
Refrigerator Door Bins | 3 Adjustable Half-Width |
Number of Interior Shelves | 3 |
Number of Doors | 2 |
Dimensions | |
Width | 75.88 cm, 29-7/8 in |
Total Refrigerator Capacity Volume | 461.29 l, 16.3 cu. ft. |
Refrigerator Capacity Volume | 12-9/50 |
Net Weight | 163.00 kg, 73.92 kg, 359-7/20 lbs, 162-971/1000 lbs |
Height | 204.98 cm, 80-7/10 in |
Gross Weight | 186.00 kg, 84.35 kg, 410-1/20 lbs, 185-24/25 lbs |
Freezer Capacity Volume | 115.75 l, 4.09 cu. ft. |
Depth With Door Open 90 Degree | 133.67 cm, 52-5/8 in |
Depth Excluding Doors | 55.88 cm, 22 in |
Depth Closed Excluding Handles | 62.99 cm, 24-4/5 in |
Depth | 62.99 cm, 24-4/5 in |
Cutout Width | 76.20 cm, 30 in |
Cutout Height | 213.36 cm, 84 in |
Cabinet Width | 75.88 cm, 29-7/8 in |
Filter Details | |
Water Filter Part Number | EDR2RXD1 |
Water Filter Location | Interior |
Water Filter Indicator/Reset | Yes |
Fresh Flow Air Filter Included | Yes |
Air Filter Indicator/Reset | Yes |
Freezer Details | |
Freezer Lighting | LED |
Freezer Drawer/Basket | 2 Full Width |
Freezer Door Type | Pull-Out |
CONTROLS | |
Sabbath Mode | Yes |
Max Cool/Fast Cool | Yes |
Door Ajar/Open Alarm | Yes |
Cooling Type | Dual Evaporator |
Automatic Defrost | Yes |
Control Location | Interior Top |
Control Type | Color Touch LCD |
Icemaker Details | |
Types of Ice | Cubed |
Icemaker | Factory Installed |
Dispenser Details | |
Dispenser Options | Filtered Ice |
Certifications | |
UL | Yes |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
ENERGY STAR Qualified | ENERGY STAR® Qualified |
CEE Tier Rating | Tier I |
Exterior Details | |
Hidden Hinge | Yes |
Door Opening Direction | Left |
Door Color | Panel Ready |
Counter Depth | Yes |
Base Grille Color | Black |
