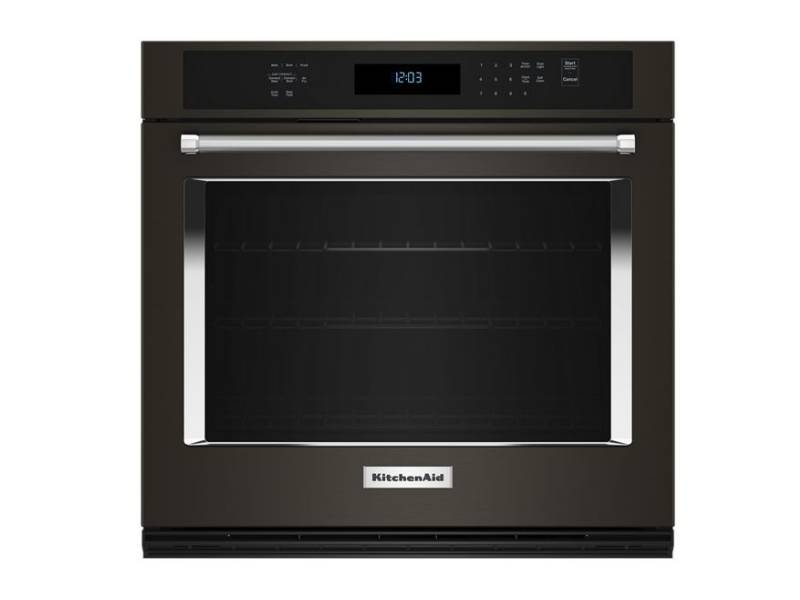

30" KitchenAid Single Wall Oven with Air Fry Mode - KOES530PBS
30" KitchenAid Single Wall Oven with Air Fry Mode - KOES530PBS
30" KitchenAid Single Wall Oven with Air Fry Mode - KOES530PSS
30" KitchenAid Single Wall Oven with Air Fry Mode - KOES530PWH
30" KitchenAid Single Wall Oven with Air Fry Mode - KOES530PPS
![](/img/brandlogo/brand_logo_22.png)
BUY MORE, SAVE MORE
Buy 4 qualifying built-in appliances SAVE AN EXTRA $800
Buy 5+ qualifying built-in appliances SAVE AN EXTRA $1200
Key Features
- Air Fry Mode
- Dishwasher-Safe Air Fry Basket
- Even-Heat™ True Convection
- EasyConvect™ Conversion System
- Even-Heat™ Preheat
Product Overview
KitchenAid® 30" Single Wall Oven with Air Fry Mode
Get the crisp you crave, right from your oven. This 30" Single Wall Oven with Air Fry Mode circulates hot air around the included basket to cook with less oil.* An integrated thermometer takes the guesswork out of roasting meat just the way you like.*When compared to deep frying.
![](/desc_images/12820/KOES530PBS_0.jpg)
Self-Cleaning Cycle
Uses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
Additional Features
Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.**When compared to deep frying.
Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
Even-Heat™ True Convection
Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
EasyConvect™ Conversion System
Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
Even-Heat™ Preheat
Raises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.
Integrated Meat Thermometer
Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
Electrical | |
---|---|
Power Cord Included | No |
Smart Compatibility | |
Works With | App, Remote Access, Voice Controlled, WiFi, App, Remote Access, Voice Controlled, WiFi, App, Remote Access, Voice Controlled, WiFi |
Connectivity | Amazon Alexa, Android, Google Assistant, iOS, Amazon Alexa, Android, Google Assistant, iOS, Amazon Alexa, Android, Google Assistant, iOS |
Details | |
Power On Indicator Light | Yes |
LP Convertible | No, No, No |
Oven Type | Single, Single, Single |
Fuel Type | Electric, Electric, Electric |
Flush Installation Approved | Yes, Yes, Yes |
Cooktop Combinations | KCES550, KCES556, KCES950, KCES956, KCGS350, KCGS356, KCGS550, KCGS556, KCGS950, KCGS956, KECC604, KECC607, KECC664, KECC667, KGCC506, KGCC566, KICU509, KICU569, KCES550, KCES556, KCES950, KCES956, KCGS350, KCGS356, KCGS550, KCGS556, KCGS950, KCGS956, KECC604, KECC607, KECC664, KECC667, KGCC506, KGCC566, KICU509, KICU569, KCES550, KCES556, KCES550, KCES556, KCES950, KCES956, KCGS350, KCGS356, KCGS550, KCGS556, KCGS950, KCGS956, KECC604, KECC607, KECC664, KECC667, KGCC506, KGCC566, KICU509, KICU569 |
CONTROLS | |
Display | Digital |
Language Conversion | English/French/Spanish, English/French/Spanish, English/French/Spanish |
Display Color | White, White, White |
Control Type | Electronic Touch, Electronic Touch, Electronic Touch |
Dimensions | |
Width | 75.56 cm, 29-3/4 in |
Oven Interior Height | 45.72 cm, 18 in |
Oven Interior Width | 63.50 cm, 25 in |
Oven Interior Depth | 48.26 cm, 19 in |
Height | 73.02 cm, 28-3/4 in |
Depth Closed Including Handles | 68.90 cm, 27-1/8 in |
Net Weight | 65-3061/10000 kg, 65-3061/10000 kg, 65-3061/10000 kg, 65-3061/10000 kg, 144 kg, 144 kg, 65-3061/10000 kg, 65-3061/10000 kg, 65-3061/10000 kg, 65-3061/10000 kg, 65-3061/10000 kg, 65-3061/10000 kg, 144 kg, 144 kg, 65-3061/10000 kg, 65-3061/10000 kg |
Gross Weight | 72-14/25 kg, 72-14/25 kg, 72-14/25 kg, 72-14/25 kg, 160 kg, 160 kg, 72-14/25 kg, 72-14/25 kg, 72-14/25 kg, 72-14/25 kg, 72-14/25 kg, 72-14/25 kg, 160 kg, 160 kg, 72-14/25 kg, 72-14/25 kg |
Depth With Door Open 90 Degree | 118.74 cm, 46-3/4 in |
Cutout Height | 71.12 cm, 28 in |
Cutout Width | 72.39 cm, 28-1/2 in |
Depth | 68.90 cm, 27-1/8 in |
Depth Closed Excluding Handles | 62.23 cm, 24-1/2 in |
Cutout Depth | 60.96 cm, 24 in |
Exterior Details | |
Handle Material | Metal, Metal, Metal |
Oven Window Size | Extra Large, Extra Large, Extra Large |
Door Lock | Yes, Yes, Yes |
Handle Color | Stainless Steel, Stainless Steel, Stainless Steel |
Door Type | Metal & Glass, Metal & Glass, Metal & Glass |
Certifications | |
CUL | Yes, Yes, Yes |
ADA Compliant | Yes, Yes, Yes |
Star K Certified | Star K Certified, Star K Certified, Star K Certified |
UL | Yes, Yes, Yes |
Oven Cavity Details | |
Bake Element Power | 2800W, 2800W, 2800W |
Broiler Element Power | 4000W, 4000W, 4000W |
Broiler Location | Top of Oven, Top of Oven, Top of Oven |
Oven Convection Cooking System | True Convection, True Convection, True Convection |
Convection Element Power | 3200 W, 3200 W, 3200 W, 3200 W |
Convection Functions | Bake, Broil, Convection Conversion, Bake, Broil, Convection Conversion, Bake, Broil, Convection Conversion |
Door Broil Position | Closed, Closed, Closed |
Door Removable | Yes, Yes, Yes |
Door Lock | Yes |
Hidden Bake Element | Yes, Yes, Yes |
Installable Under Oven | Yes, Yes, Yes |
Installable Under Cooktop | Yes, Yes, Yes |
Interior Coating | Porcelain, Porcelain, Porcelain |
Interior Color | Blue, Blue, Blue |
Light Type | Halogen, Halogen, Halogen |
Number of Broil Elements | 1 |
Number of Bake Elements | 2, 2, 2 |
Number of Oven Lights | 2, 2, 2 |
Number of Rack Guides | 6, 6, 6 |
Oven Racks | 3, 3, 3 |
Self-Cleaning Oven Racks | No, No, No |
Cleaning Type | Self-Cleaning, Self-Cleaning, Self-Cleaning |
