Features

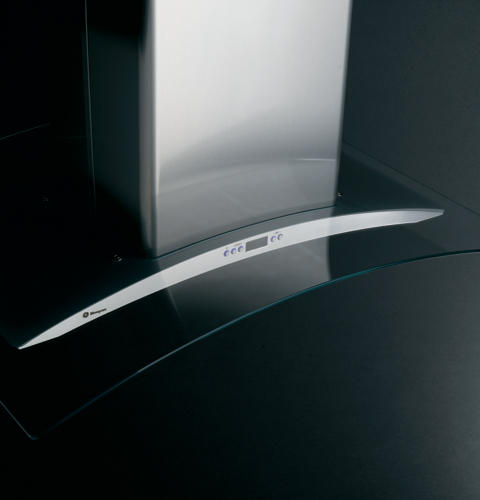

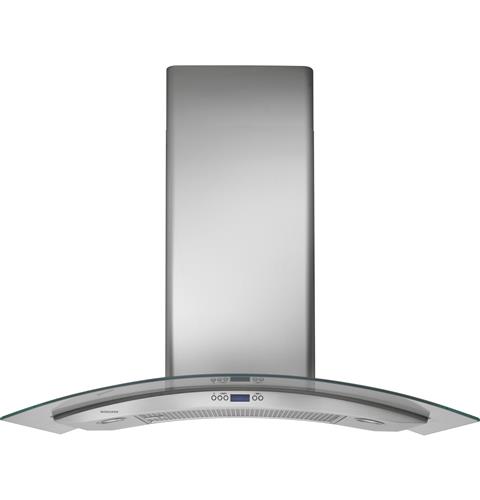

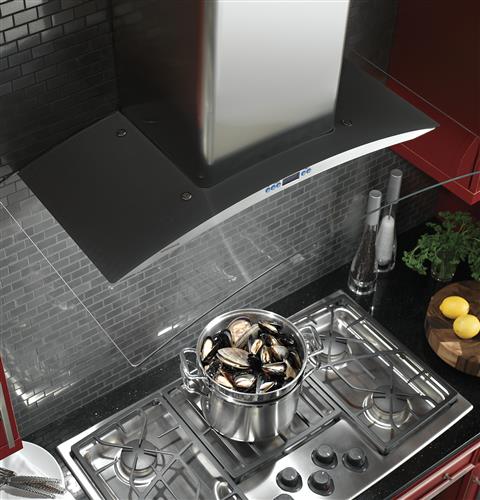

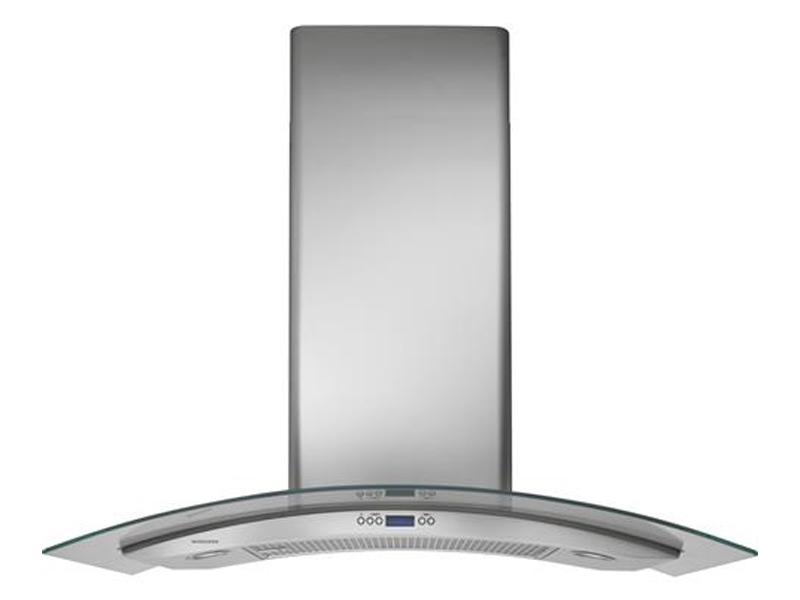

Sleek, understated appearance
Combines the durability of professional-grade stainless steel with the elegant simplicity of bowed, tempered glass

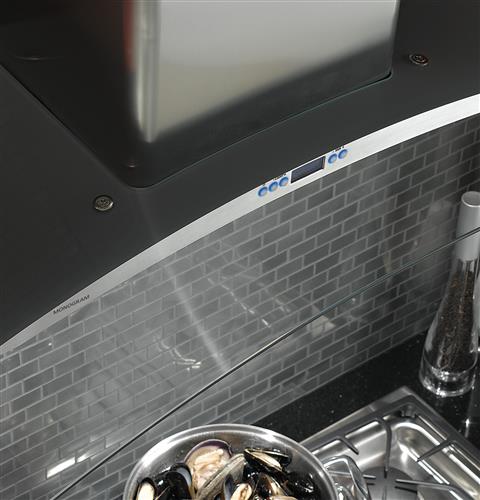

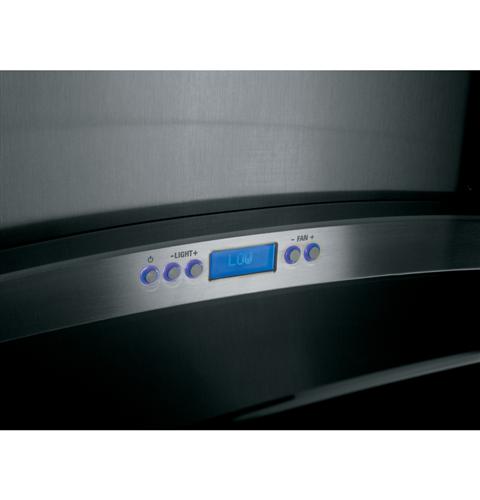

Backlit, touch controls and digital readout
Allow you to easily select and view hood functions
Powerful ventilation
Offers three speeds plus a 490-cfm boost to capture cooking fumes and odors

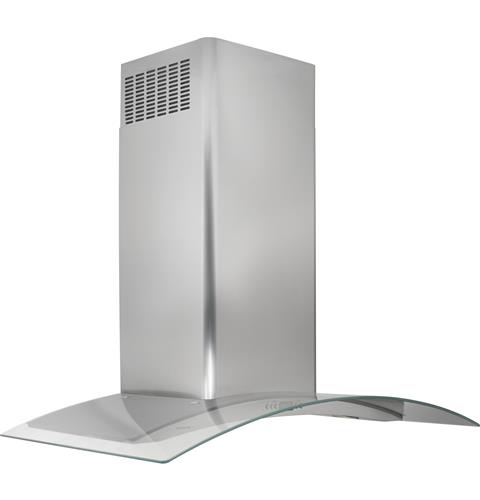

Recirculating-ready design
Includes a reversible duct cover and charcoal filter for non-vented installations, eliminating the need for an optional kit

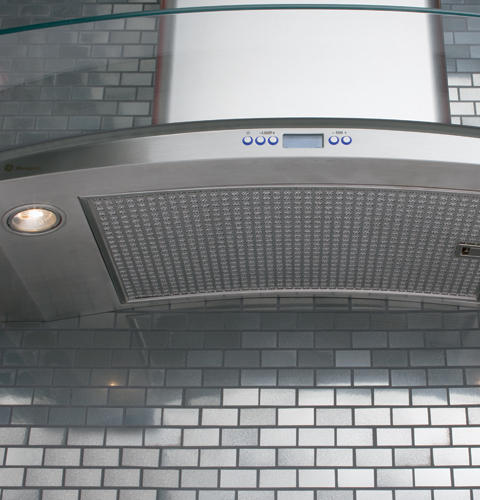

Halogen lighting
Provides four levels of clean, brilliant illumination to suit any cooking task

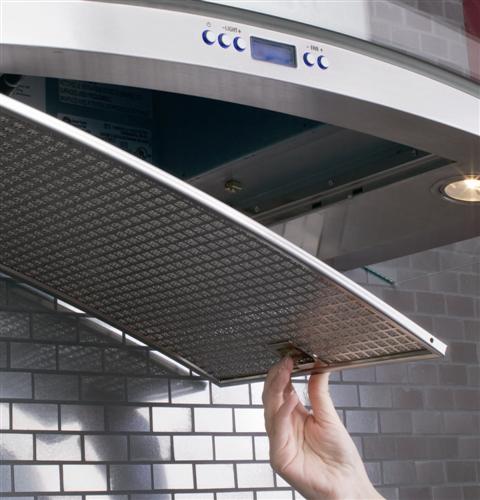

Removable stainless steel filter
Detaches easily for safe cleaning in your dishwasher
Inputs & Outputs | |
---|---|
Blower Levels | 4 |
Control Type | Electronic, LCD, Pushbutton |
Cooktop Lighting | 2, Halogen |
Damper in Transition | Yes |
Exhaust Options | 8" Round Duct |
Lighting Levels | 4 |
Recirculating Capable | Yes |
Removable Stainless Steel Filters | 1 |
Required Duct Size | 8-in. Round |
Variable Speed Fan | Low/Med/High/Boost |
Vertical Exhaust Blower Rating (CFM) | 490 |
Welded / Finished Seams | Yes |
Indicator Lights | "ON" |
Ventilation System Control Features | Auto "On" |
Appearance | |
Color Appearance | Glass Canopy |
Design Style | Chimney |
Exterior Design | Chimney - Wall-Mount |
Weights & Dimensions | |
Approximate Shipping Weight | 123.0 |
Cabinet Width | 36.0 |
Net Weight | 101.0 |
Overall Depth | 20.4375 |
Overall Height | 3.25 |
Overall Width | 35.875 |
Power / Ratings | |
Amp Rating at 120V | 4.5 |
Accessories | |
Optional 10' Ceiling Extension | ZX90010 for 9' 6" to 10' 5" ceilings |
Warranty | |
Labor Warranty | Limited 1-year entire appliance |
Parts Warranty | Limited 1-year entire appliance |
