Features

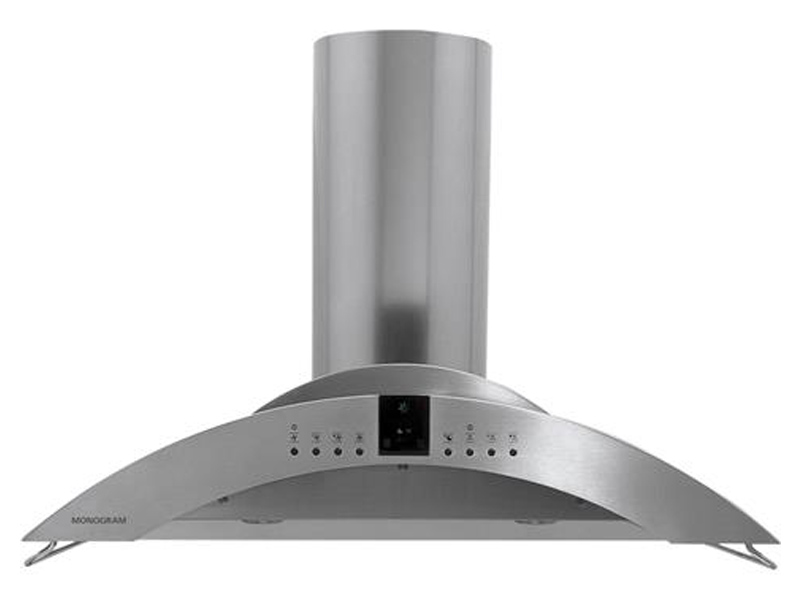

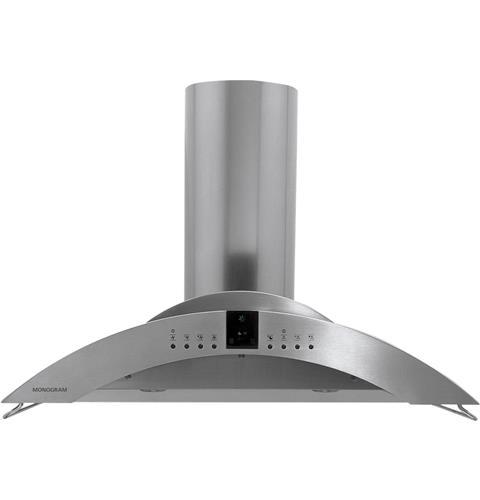

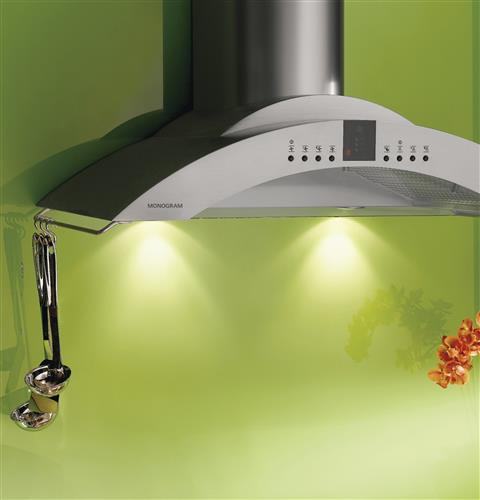

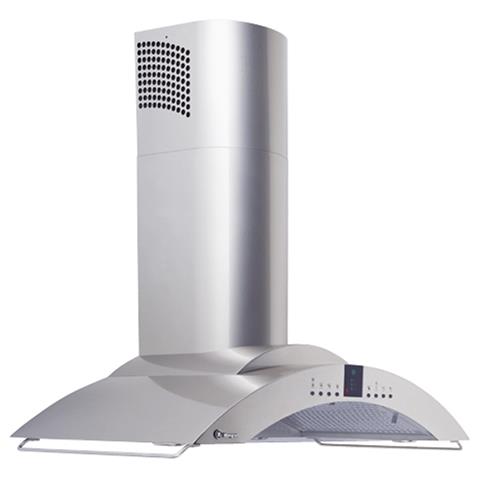

Stainless steel design
graceful curves and lines creates a distinct appearance that enhances any kitchen
350 CFM, four-speed fan
provides the power necessary to capture smoke and fumes produced by high-performance cooking equipment
Four halogen lights
Offer six levels of intensity, from ambient to low/night illumination, to meet different needs
Three removable filters
Trap airborne grease particles and are dishwasher-safe. An indicator light signals when the filters need cleaning.
Timer
Can be set for the fan to automatically shut-off after 5, 10 or 20 minutes of operation
Optional recirculating kit (included)
Can be installed for internal ventilation
Inputs & Outputs | |
---|---|
Blower Levels | 4 Including Boost |
Control Type | 8 Pushbuttons, Electronic |
Cooktop Lighting | 4, Halogen |
Damper in Transition | Yes |
Exhaust Options | 6" Round Duct (Extends to 8' Ceiling) |
Filter Cleaning Reminders | Yes |
Lighting Levels | 6 |
Recirculating Capable | Yes, Included |
Removable Stainless Steel Filters | 3 |
Time Delay Shut-Off | Yes |
Variable Speed Fan | Yes |
Vertical Exhaust Blower Rating (CFM) | 350 |
Appearance | |
Color Appearance | Stainless Steel |
Design Style | Chimney |
Exterior Design | Chimney - Island |
Weights & Dimensions | |
Approximate Shipping Weight | 106.0 |
Cabinet Width | 36.0 |
Net Weight | 76.0 |
Overall Depth | 27.5 |
Overall Height | 41.5 |
Overall Width | 36.5 |
Power / Ratings | |
Amp Rating at 120V | 3.74 |
Accessories | |
Optional 10' Ceiling Extension | ZX8510SPSS for 9.5' to 10' ceilings |
Warranty | |
Labor Warranty | Limited 1-year entire appliance |
Parts Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
