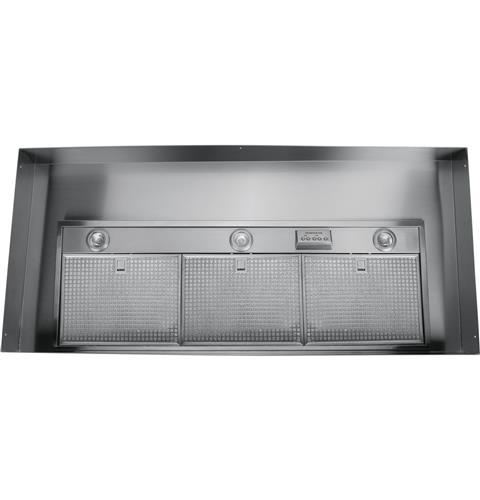

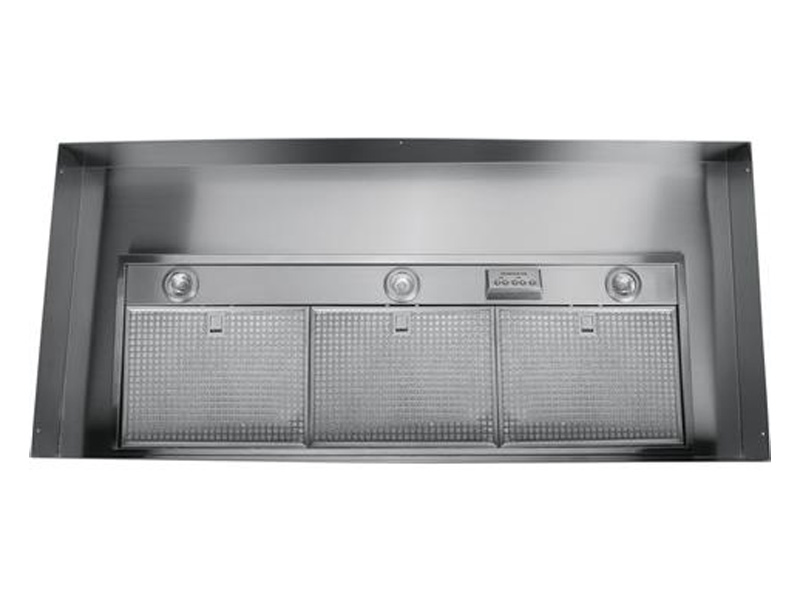

48" Monogram Custom Hood Insert - ZVC48LSS

Category : Ventilation
SKU : ZVC48LSS

$4,729.00 CAD

Literature

Features

Dual-blower ventilation with 920 CFM

Provides the power necessary to capture the smoke and oily fumes produced by high-performance cooking equipment

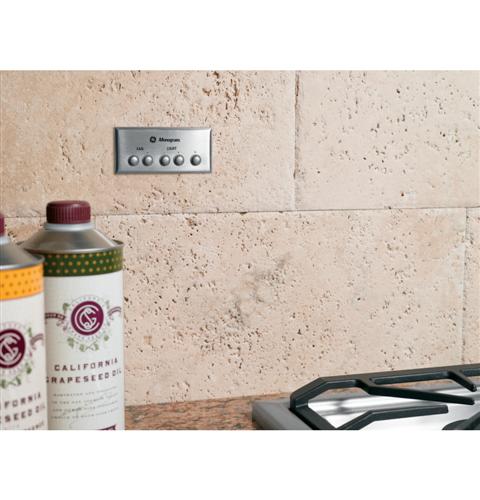

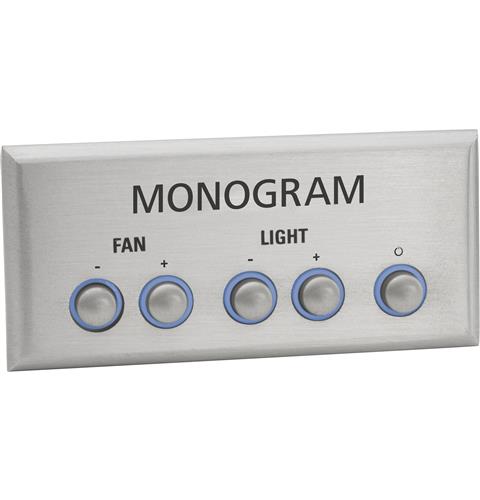

Control panel with remote-mount option

Offers added flexibility for wall or countertop installation

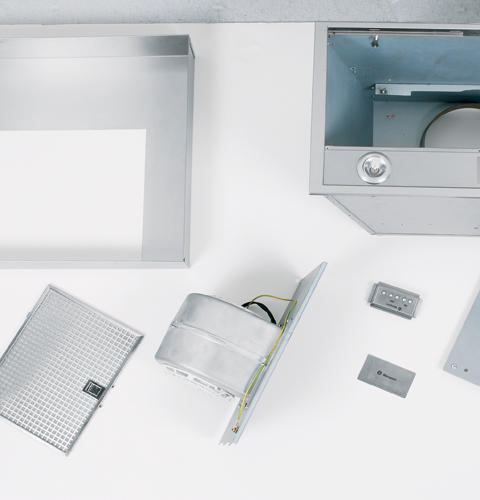

Blower, liner and filters included

No additional components or accessory kits required

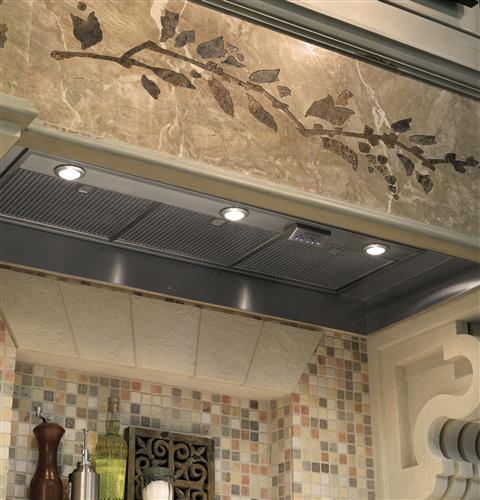

Three halogen lights

Illuminate the cooktop surface



Inputs & Outputs
Blower Levels4
Control TypeElectronic, Pushbutton
Cooktop Lighting3, Halogen
Dual BlowersYes
Exhaust Options8" Round Duct
Lighting Levels4
Recirculating CapableNo
Removable FilterYes
Removable Stainless Steel Filters3
Required Duct Size8-in. Round
Sones Rating : Top Exhaust-Round10.5
Variable Speed FanYes
Vertical Exhaust Blower Rating (CFM)920
Welded / Finished SeamsYes
Indicator Lights"ON"
Appearance
Color AppearanceStainless Steel
Custom InsertYes
Design StyleCustom Panel
Weights & Dimensions
Approximate Shipping Weight121.0
Cabinet Width48.0
Net Weight97.0
Overall Depth21.25
Overall Height18.0
Overall Width46.5
Power / Ratings
Amp Rating at 120V10.34
Amps at 110V9.50
Warranty
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
