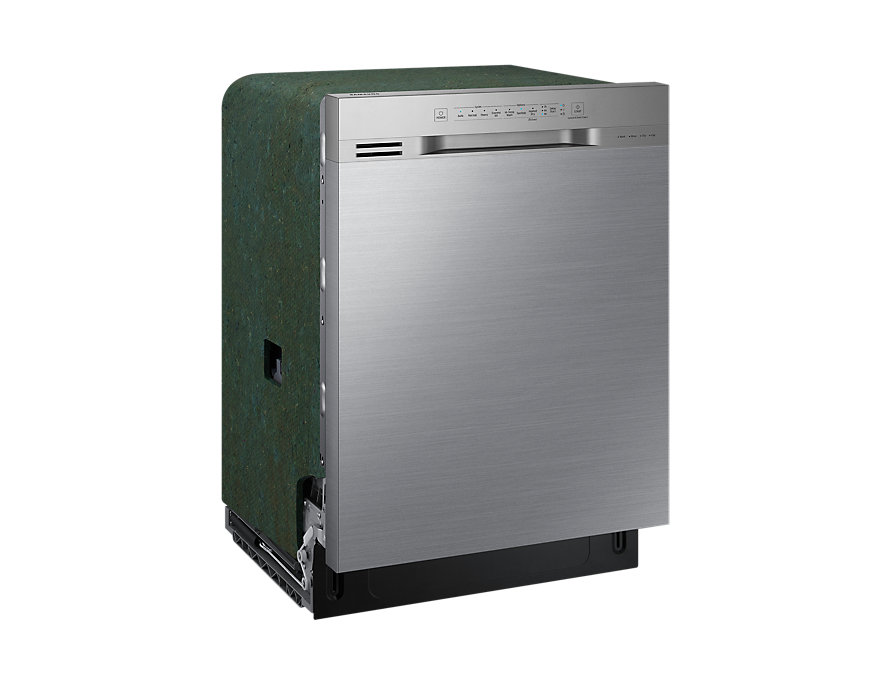

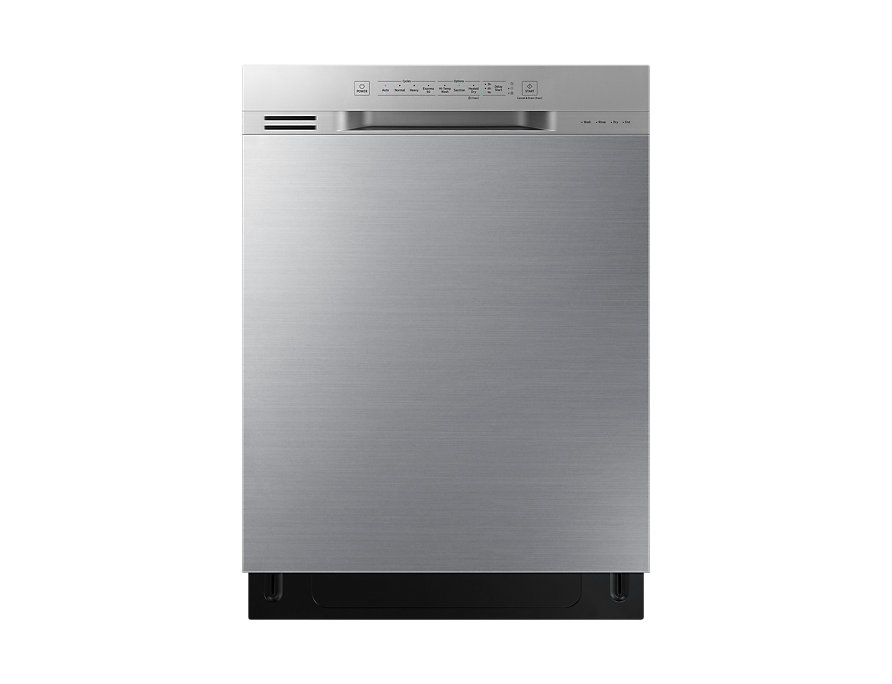

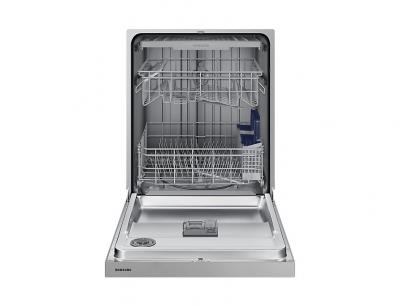

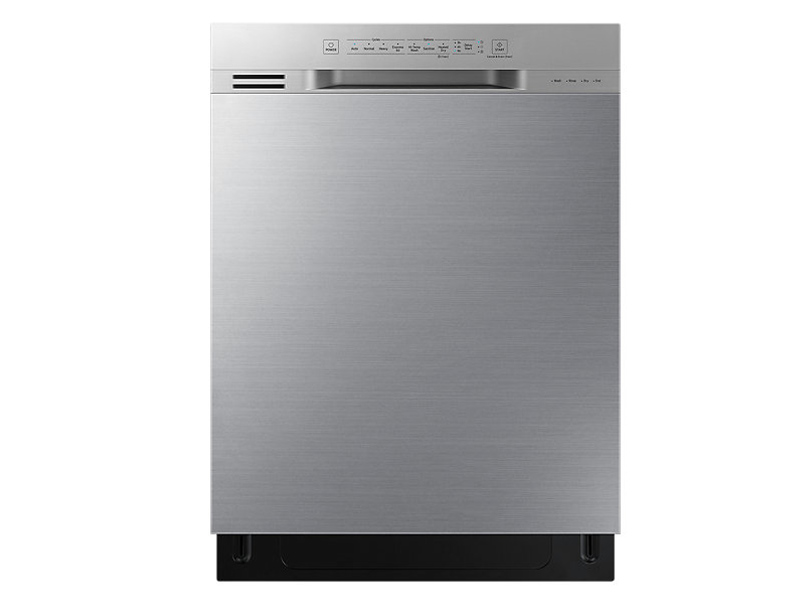

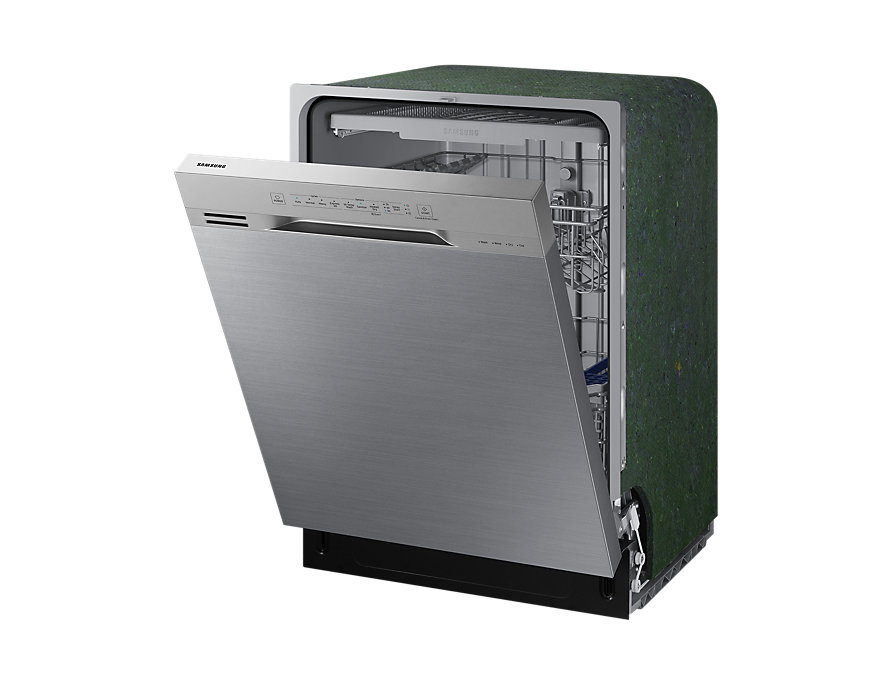

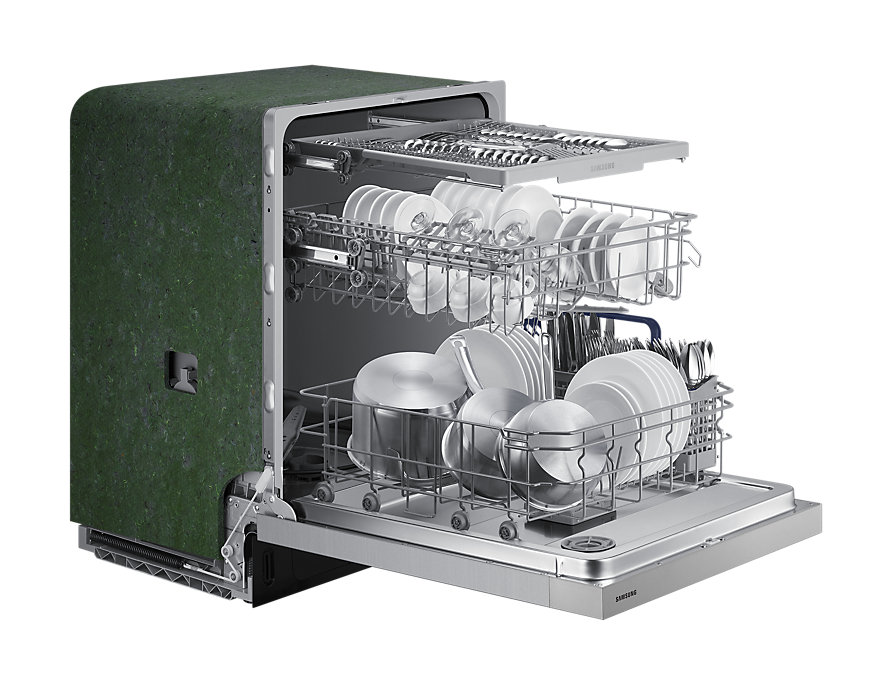

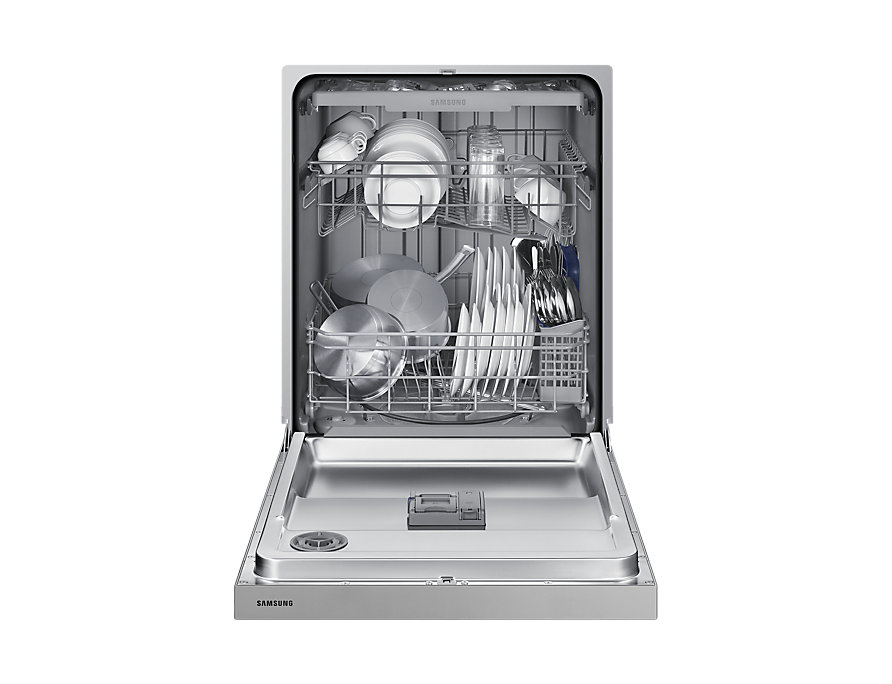

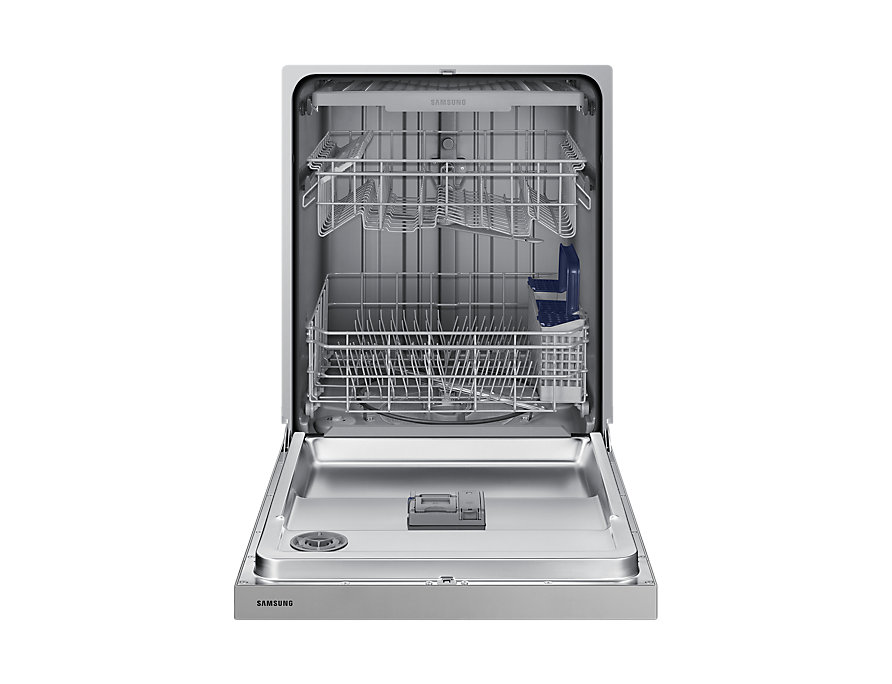

24" Samsung Dishwasher with third rack - DW80N3030US
![](/img/brandlogo/brand_logo_24.png)
![](/desc_images/2189/DW80N3030US-AA_a0.jpg)

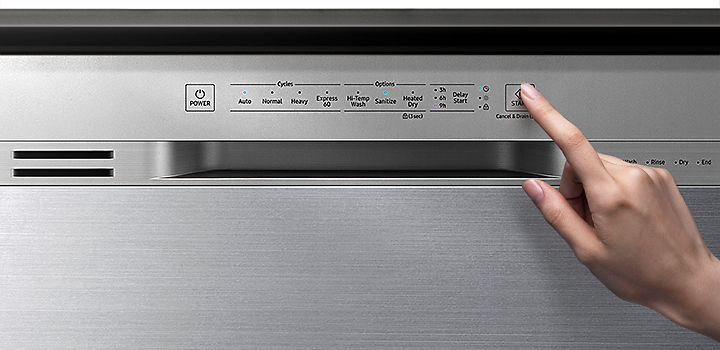

Easily check and control with one touch
Touch Control
Take control with one touch using a fully integrated Touch Control panel with soft touch technology. Located on top of the door, you can easily select functions with a gentle touch and intuitively check the status of each cycle. It also creates a modern kitchen style with a clean, minimalist look.
![](/desc_images/2189/DW80N3030US-AA_a1.jpg)

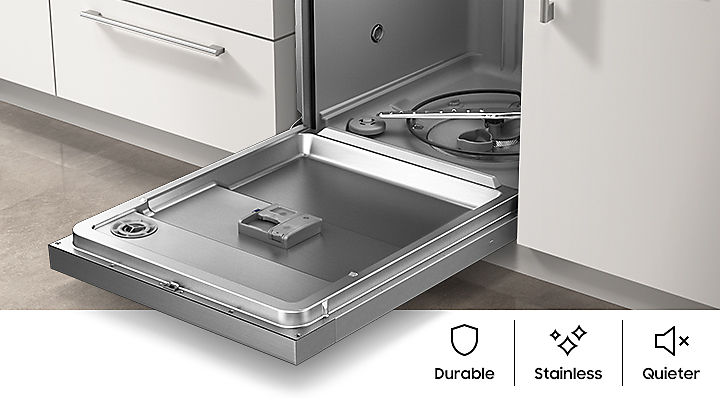

Durable, stain resistant Hybrid Tub
Hybrid Tub
Keep your dishwasher looking like new. The hybrid tub featuring a stainless steel door interior is durable, quiet and clean.
![](/desc_images/2189/DW80N3030US-AA_a2.jpg)

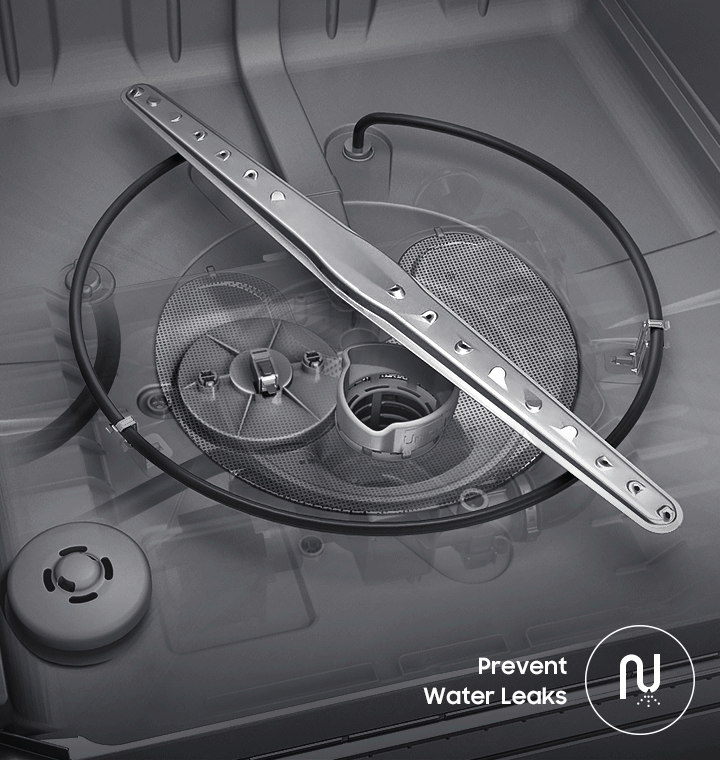

Rapid water leak detection & protection
Smart Leakage Sensor
Smart Leakage Sensor is located below the dishwasher so it detects small traces of water. If any leaks are found, it stops the cycle, drains the water and shows an error message.
![](/desc_images/2189/DW80N3030US-AA_a3.jpg)

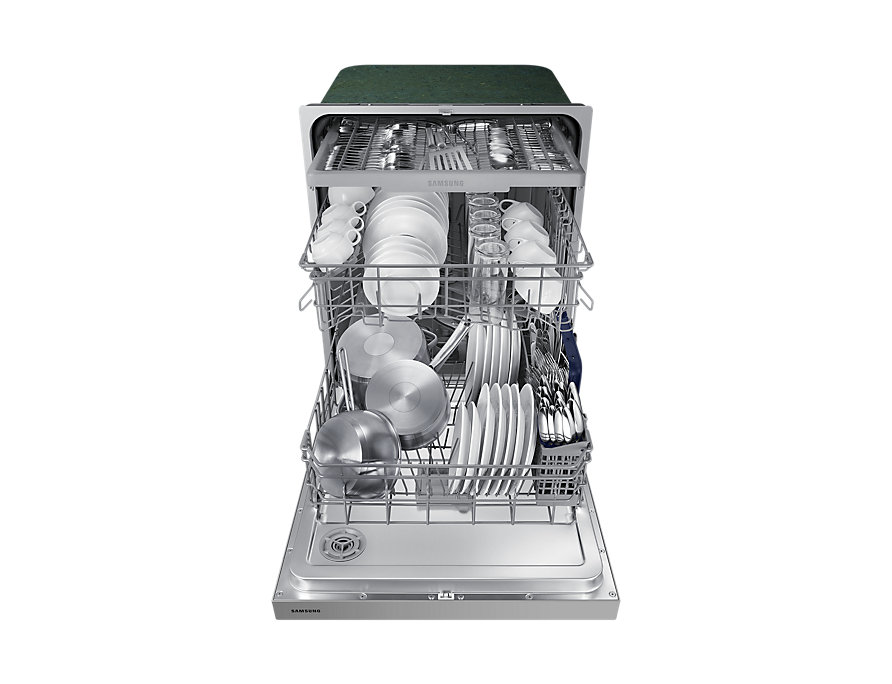

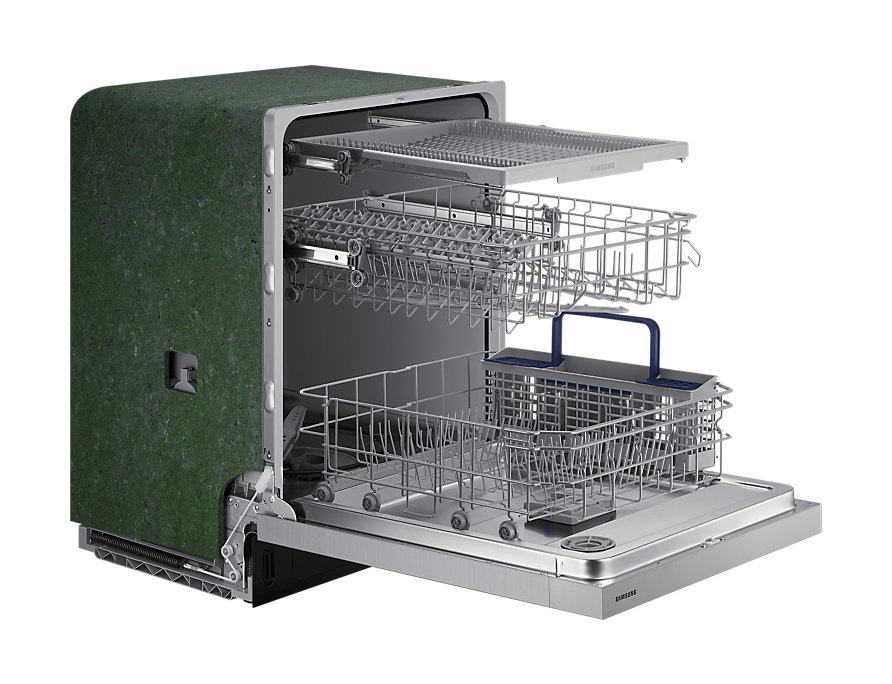

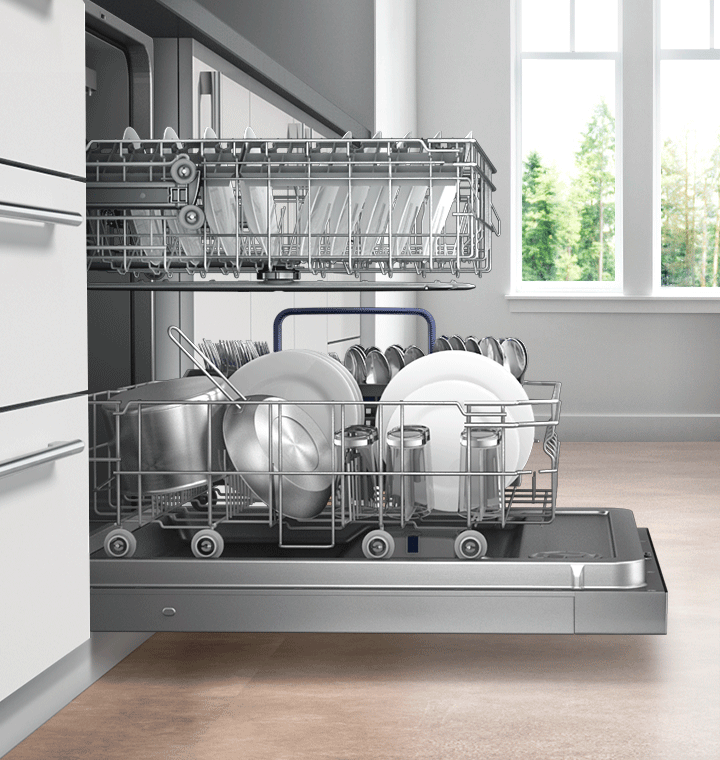

Easily fit in taller and wider dishes
Height Adjustment
The Height Adjustment feature allows the upper rack to be moved up or down by an extra 2 inches to create more space in the lower rack. So cleaning tall pots, wide platters and oversized plates is no longer a problem.
![](/desc_images/2189/DW80N3030US-AA_a4.jpg)
Cleaner dishes � automatically
Auto Cycle
The Auto Cycle feature ensures that your dishes are cleaned efficiently. It detects how dirty they are and then automatically selects the optimal cleaning cycle.
![](/desc_images/2189/DW80N3030US-AA_a5.jpg)

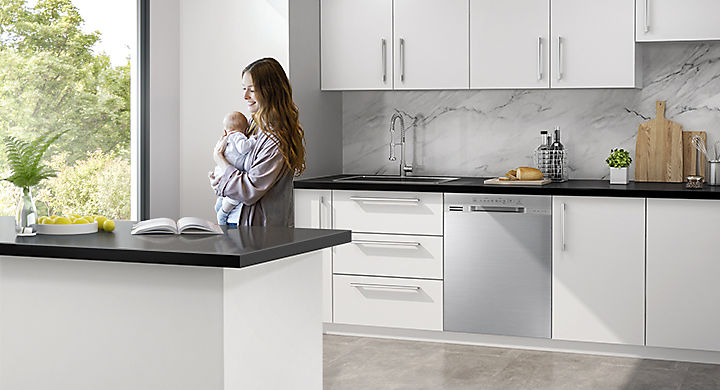

Less noise. Less disturbance at home.
Quiet operation
The Hybrid Tub, with a stainless steel inner door, is designed to create less noise. It absorbs much of the sound and vibration when it's working, so it operates quietly. At 51 decibels it is quieter than a normal conversation.
![](/desc_images/2189/DW80N3030US-AA_a6.jpg)
Certified energy & water efficiency
ENERGY STAR
Become more environmentally friendly, while also spending less. The dishwasher is ENERGY STAR® certified. So you save money using less energy and water with each cycle without sacrificing performance or functionality. Its exceptional energy efficiency also reduces the impact on the environment.
Design | |
---|---|
Size | 24"T |
Colour | STSS |
Control Location | Front touch |
Washing Type | Rotary |
Display Light Color | Ice blue |
Installation | Built under |
Configuration and Overview | |
Energy Star | Yes |
Capacity (Place Setting) | 15 P/S |
Energy Annual consumption | 255 kWh/year |
Dry System | Vent |
Cycle time (min) | 139 min |
Noise level (dBA) | 51 dBA |
Water Consumption Per Cycle (gallons) | 3.5 gallons |
Programs | |
Normal | Yes |
Number of programs | 4 |
Heavy | Yes |
Auto | Yes |
Express 60' | Yes |
Options | |
Number of Option | 5 |
Delay Start | Yes |
Heated Dry | Yes |
Sanitize | Yes |
Hi-Temp Wash | Yes |
Control Lock | Yes |
UPPER RACK | |
Adjustable Height | Yes |
Cup support clip | Yes |
Cutlery Basket | |
Cutlery Basket | Yes |
Cutlery Tray | Yes |
General Feature | |
Tub Material | Plastic |
Heater Position | Exposed |
NSF Certified for Sanitization | Yes |
Number of Wash Arm | Upper/Mid/Low |
Leakage Sensor | Yes |
Cancel&Drain Button | Yes |
Food Disposer | No |
Dimension | |
Net Depth(inch) | 24.75" |
Net Height(inch) | 33.75" |
Net Width (inch) | 23.75" |
Net Weight | 32 kg |
Gross Weight | 37 kg |
Power/Ratings | |
Heater Watts | 840 |
Electrical(Volts/Hertz/Amps) | 120/60/15 |
Circulation Motor | 50 |
