30" Whirlpool Gas Cooktop with 2-in-1 Hinged Grate to Griddle - WCGK7530PS
![](/img/brandlogo/brand_logo_23.png)
Product Overview

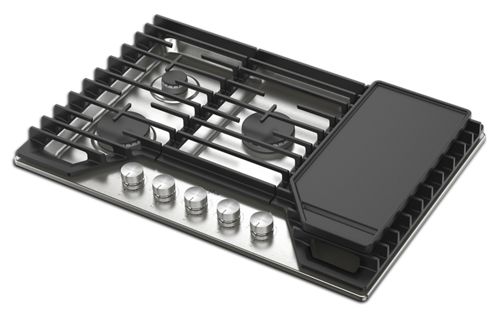

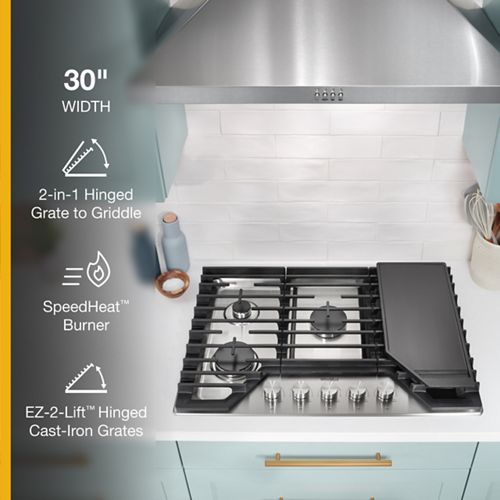

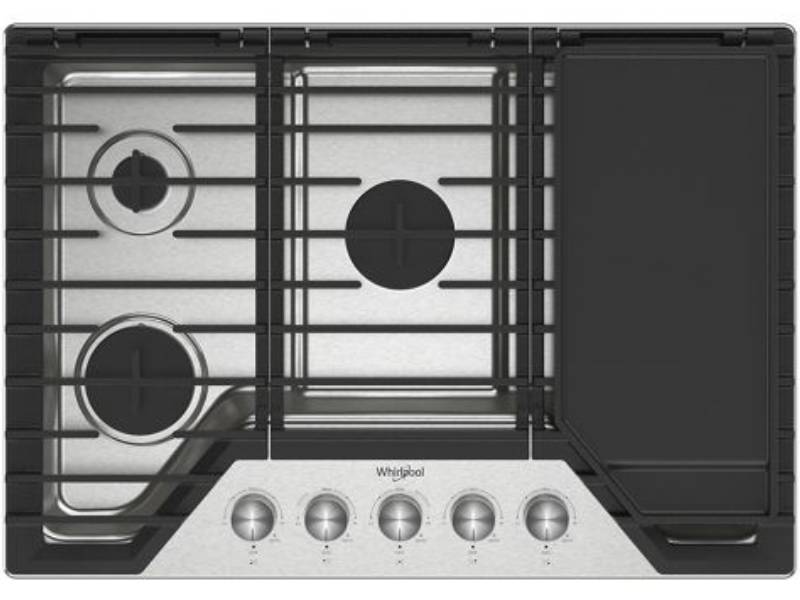

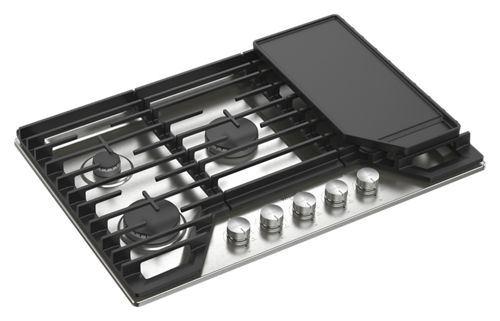

30-inch Gas Cooktop with 2-in-1 Hinged Grate to Griddle
Cook everyone's favourite at once with this 5-burner gas cooktop that offers greater Cooking Flexibility. This cooktop griddle includes a SpeedHeat Burner for a quick boil and comes with a 2-in-1 Hinged Grate to Griddle so you can easily swap cooking surfaces. Then cleanup is quick and easy with the EZ-2-Lift Hinged Cast-Iron Grates.
Additional Features

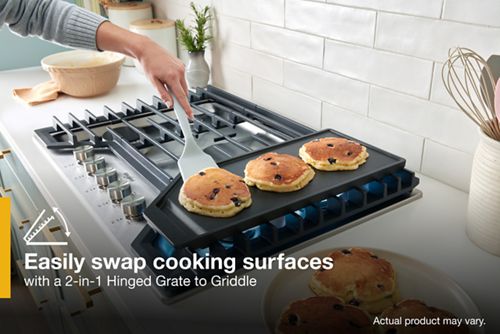

Enjoy more mealtime possibilities by easily swapping between cooking surfaces with our industry-first interlocking 2-in-1 Hinged Grate to Griddle. Use the griddle for breakfast, then move it out of the way to use the grate for dinner. The hinged design also allows for easy cleaning.
Get a rapid boil and perfect sear quickly with the SpeedHeat Burner, which generates high heat to get dinner to the table fast.
Cooking Flexibility
Navigate busy mealtimes with various burner sizes and a range of power levels, so you can simmer your sauce while you sear your steaks to maximize time in the kitchen.

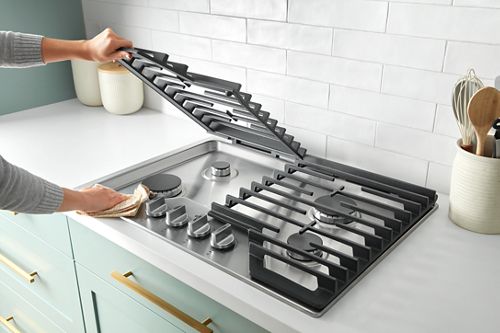

EZ-2-Lift Hinged Cast-Iron Grates
Get quick access to spills on the cooktop with our industry-first EZ-2-Lift Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without the hassle of removing heavy grates.
Fifth Burner
Save time and cook everyone s favorite at once with the extra Fifth Burner. With room to fit different pan sizes, you can boil water, saut veggies and sear burgers all at the same time.
5K BTU Simmer Burner
Easily maintain low, even heat to simmer your sauces, warm up leftovers or melt chocolate with the 5K BTU Simmer Burner.
Details | |
---|---|
Digital Display | No |
Cooktop Configuration | All Burners |
Installs Over Built-In Oven | Yes |
LP Convertible | Yes - Kit Included |
Power Outage Compatible | Yes |
Ventilation Details | |
Downdraft Vent | No |
Ventilation Type | N/A |
Venting | N/A |
Element/Burner Details | |
Right Rear Element-Burner Type | Standard |
Right Rear Element-Burner Power | 9100 BTU |
Right Front Element-Burner Power | 9100 BTU |
Right Front Element-Burner Type | Standard |
Number of Grates | 3 |
Power Boost | No |
Number of Cooking Element-Burners | 5 |
Left Rear Element-Burner Type | Simmer |
Left Rear Element-Burner Power | 5000 BTU |
Left Front Element-Burner Type | Standard |
Automatic Pan Detection | No |
Automatic Pan Size Adjustment | No |
Center Element Burner Power | 18,000 BTU |
Center Element Burner Type | Power |
Cooktop Element Style | Sealed Burner |
Left Front Element-Burner Power | 12000 BTU |
Electrical | |
Power Cord Included | Yes |
Grate Details | |
Number of Grates | 3 |
Grate Details | Cast Iron Grates, Continuous with Hinge, Dishwasher Safe, Matte Finish |
CONTROLS | |
Control Location | Front |
Control Type | Knobs |
Smart Compatibility | |
Works With | No |
Certifications | |
ADA Compliant | ADA Height and Side Reach Compliant |
UL | Yes |
Exterior Details | |
Knob Color | Stainless Steel |
Knob Type | Metal |
Cooktop Details | |
Combination Match with Oven | WOES3027L, WOES3030L, WOES5027L, WOES5030L, WOES5930L, WOES7027P, WOES7030P, WOS11EM4, WOS31ES0, WOS31ES7, WOS51EC0, WOS51EC7, WOS51ES4, WOS52EM4, WOS52ES4M, WOS72EC0, WOS72EC7, WOS92EC0, WOS92EC7, WOS97EC0, WOS97ES0, WOSA2EC0 |
Cooktop Surface Color | Stainless |
Digital Display | No |
Griddle Included | Yes, Integrated |
Ignition Type | Direct Spark Ignition |
Hot Surface Indicator Light | No |
Heating Element On Indicator Light | No |
Installs Over Built-In Oven | Yes |
Dimensions | |
Cutout Depth | 50.80 cm, 20 in |
Cutout Depth Max | 50.80 cm, 20 in |
Depth | 53.34 cm, 21 in |
Cutout Width Max | 74.46 cm, 29-313/1000 in |
Cutout Width | 74.46 cm, 29-313/1000 in |
Cutout Depth Min | 48.26 cm, 19 in |
Gross Weight | 30.91 kg, 14.02 kg, 68-7/50 lbs, 30-9/10 lbs |
Height | 13.02 cm, 5-1/8 in |
Net Weight | 28.71 kg, 13.02 kg, 63-3/10 lbs, 28-283/400 lbs |
Width | 76.20 cm, 30 in |
