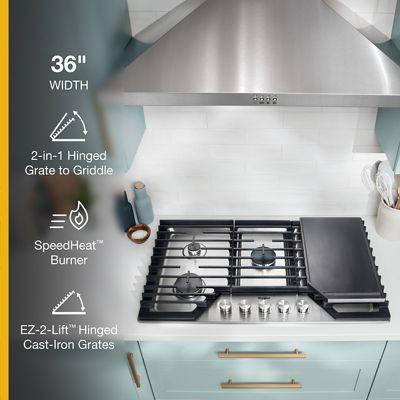

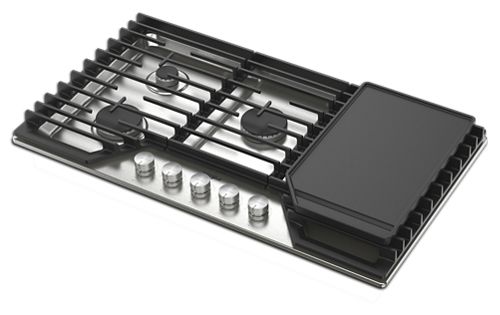

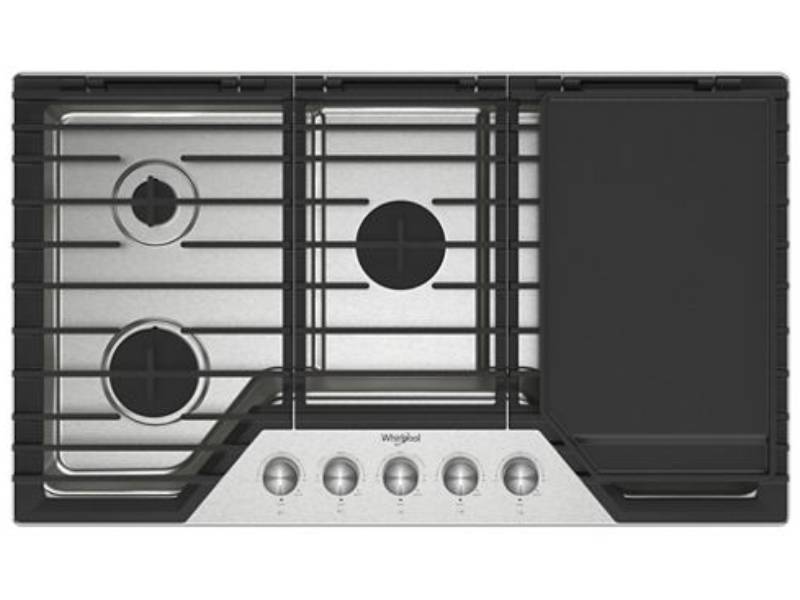

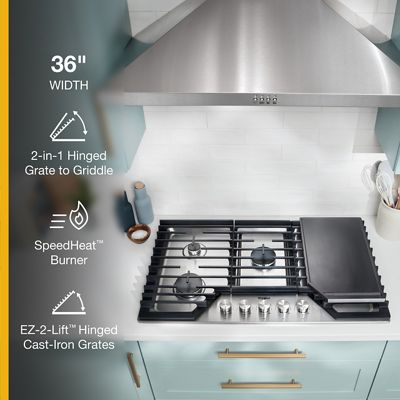

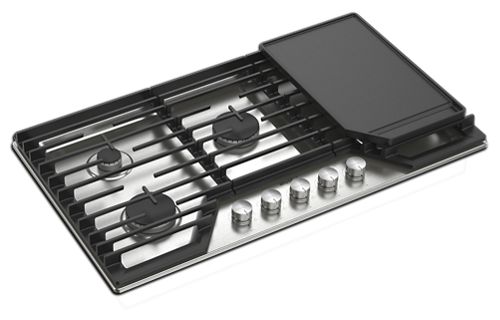

36" Whirlpool Gas Cooktop with 2-in-1 Hinged Grate to Griddle - WCGK7536PS
![](/img/brandlogo/brand_logo_23.png)
Top Features

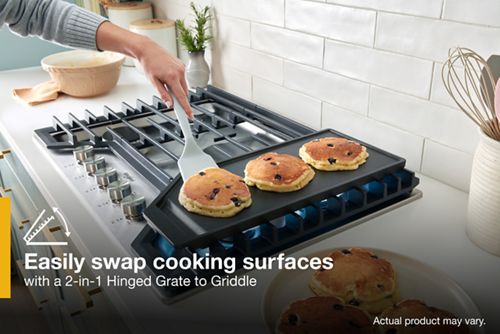

2-in-1 Hinged Grate to Griddle
Enjoy more mealtime possibilities by easily swapping between cooking surfaces with our industry-first interlocking 2-in-1 Hinged Grate to Griddle. Use the griddle for breakfast, then move it out of the way to use the grate for dinner. The hinged design also allows for easy cleaning.
SpeedHeat™ Burner
Get a rapid boil and perfect sear quickly with the SpeedHeat™ Burner, which generates high heat to get dinner to the table fast.
Cooking Flexibility
Navigate busy mealtimes with various burner sizes and a range of power levels, so you can simmer your sauce while you sear your steaks to maximize time in the kitchen.
Additional Features

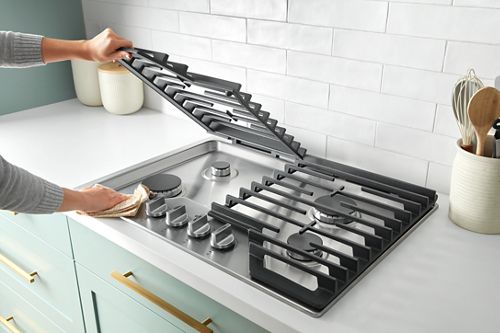

EZ-2-Lift™ Hinged Cast-Iron Grates
Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without the hassle of removing heavy grates.
Fifth Burner
Save time and cook everyone’s favorite at once with the extra Fifth Burner. With room to fit different pan sizes, you can boil water, sauté veggies and sear burgers all at the same time.
5K BTU Simmer Burner
Easily maintain low, even heat to simmer your sauces, warm up leftovers or melt chocolate with the 5K BTU Simmer Burner.
9.1K–12K BTU Multi-Purpose Burners
Get a variety of heating power with your multi-purpose burners. The 9.1K BTU burner gives medium heat for daily cooking while the 12K BTU burner gives quick, high heat for searing.
Dishwasher-Safe Cast-Iron Grates
Wash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.

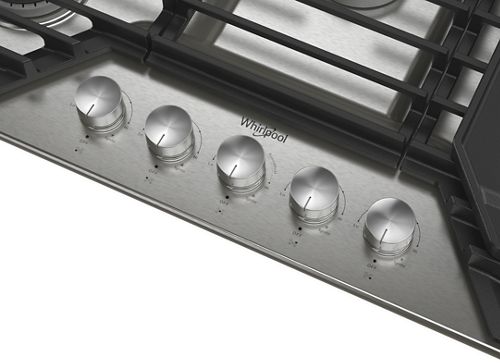

Dishwasher-Safe Knobs
Make cleanup easy by washing knobs right in the dishwasher.
Upswept SpillGuard™ Cooktop
Cleanup is fast and easy with a cooktop that has raised edges to help contain spills.
Edge-to-Edge Cast-Iron Grates
Maximize your space to sauté, boil and simmer with cast-iron grates that extend across the entire cooktop, giving you the flexibility to move pots and pans anywhere.
Sealed Burners
Cut down on cleanup with burners that are sealed to prevent food from falling into them.
Wall Oven Compatible
Install this cooktop in a counter above select Whirlpool® Single Wall Ovens or on its own for more flexibility.
ADA Compliant
This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Electrical | |
---|---|
Power Cord Included | Yes |
Ventilation Details | |
Venting | N/A |
Ventilation Type | N/A |
Downdraft Vent | No |
Details | |
Power Outage Compatible | Yes |
LP Convertible | Yes - Kit Included |
Installs Over Built-In Oven | Yes |
Digital Display | No |
Cooktop Configuration | All Burners |
Smart Compatibility | |
Works With | No |
Connectivity | No |
Element/Burner Details | |
Right Rear Element-Burner Type | Standard |
Right Rear Element-Burner Power | 9100 BTU |
Right Front Element-Burner Type | Standard |
Right Front Element-Burner Power | 9100 BTU |
Power Boost | No |
Number of Grates | 3 |
Number of Cooking Element-Burners | 5 |
Left Rear Element-Burner Power | 5000 BTU |
Left Rear Element-Burner Type | Simmer |
Left Front Element-Burner Type | Standard |
Center Element Burner Power | 18,000 BTU |
Center Element Burner Type | Power |
Cooktop Element Style | Sealed Burner |
Left Front Element-Burner Power | 12000 BTU |
Automatic Pan Size Adjustment | No |
Automatic Pan Detection | No |
Certifications | |
ADA Compliant | ADA Height and Side Reach Compliant |
UL | Yes |
Exterior Details | |
Knob Color | Stainless Steel |
Knob Type | Metal |
Cooktop Details | |
Combination Match with Oven | WOES3027L, WOES3030L, WOES5027L, WOES5030L, WOES5930L, WOES7027P, WOES7030P, WOS11EM4, WOS31ES0, WOS31ES7, WOS51EC0, WOS51EC7, WOS51ES4, WOS52EM4, WOS52ES4M, WOS72EC0, WOS72EC7, WOS92EC0, WOS92EC7, WOS92EC7A, WOS97EC0, WOS97ES0, WOSA2EC0 |
Cooktop Surface Color | Stainless |
Digital Display | No |
Griddle Included | Yes, Integrated |
Ignition Type | Direct Spark Ignition |
Hot Surface Indicator Light | No |
Heating Element On Indicator Light | No |
Installs Over Built-In Oven | Yes |
Dimensions | |
Cutout Width | 89.54 cm, 35-1/4 in |
Cutout Depth Min | 48.26 cm, 19 in |
Cutout Depth Max | 50.80 cm, 20 in |
Cutout Depth | 50.80 cm, 20 in |
Depth | 53.34 cm, 21 in |
Cutout Width Max | 89.54 cm, 35-1/4 in |
Gross Weight | 35.47 kg, 16.08 kg, 78-1/5 lbs, 35-23/50 lbs |
Height | 13.02 cm, 5-1/8 in |
Net Weight | 32.25 kg, 14.63 kg, 71-1/10 lbs, 32-2449/10000 lbs |
Width | 91.44 cm, 36 in |
Grate Details | |
Grate Details | Cast Iron Grates, Continuous with Hinge, Dishwasher Safe, Matte Finish |
Number of Grates | 3 |
CONTROLS | |
Control Location | Front |
Control Type | Knobs |
